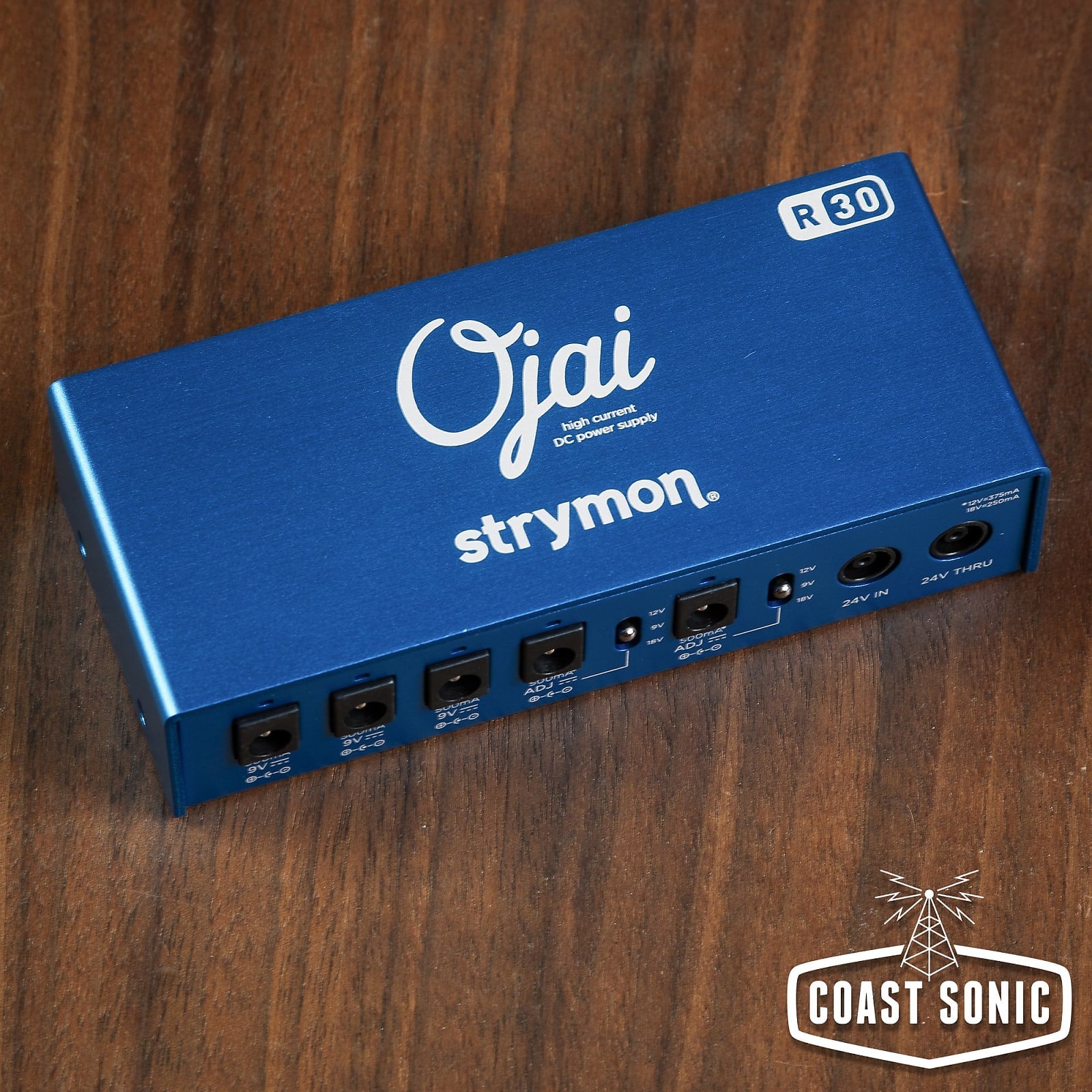

Strymon Ojai R30 Expansion Kit


Maker: Strymon

Model: Ojai R30

Condition: New



Description:

Expand your Strymon power system.

Never run out of outputs.

Have an existing Strymon effects pedal power supply? Gain five additional isolated pedal outputs with an Expansion Kit. Easily build a modular power system that can grow with your pedalboard.

How does it work?

Expansion Kits require an existing Strymon power product which connects to an AC power outlet, either directly (Zuma, Zuma R300) or via an external power adapter (Ojai R30, Ojai). Simply link an Expansion Kit to your existing Strymon power product via the 24V jack.

Ojai R30 Expansion Kit

5 total outputs (2 adjustable 9/12/18V)
Power adapter not included
Requires existing Strymon power system

What is included?

Expansion Kits consist of an isolated power distributor and all of the necessary connection cables to integrate it with your existing Strymon power supply and power up to five additional effects pedals.

When should I use an Expansion Kit?

Use an Expansion Kit when you need to add more pedals to your Strymon powered pedalboard. Expansion Kits do not come with a power adapter, and will operate only when connected to an existing Strymon power product.

Specs:

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • EIAJ-05 power adapter cable included (18″ long, to connect Ojai to PS-124, Zuma, or Zuma R300 power supply)
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
  • 5 individual custom transformers (one per channel) deliver clean, consistent power
  • Worldwide power compatibility ensures no-hassle international touring
  • Energy efficient, compact design
  • Lightweight and rugged anodized midnight blue aluminum chassis
  • Ultra low profile design fits under nearly any pedalboard
  • Designed and built in the USA
