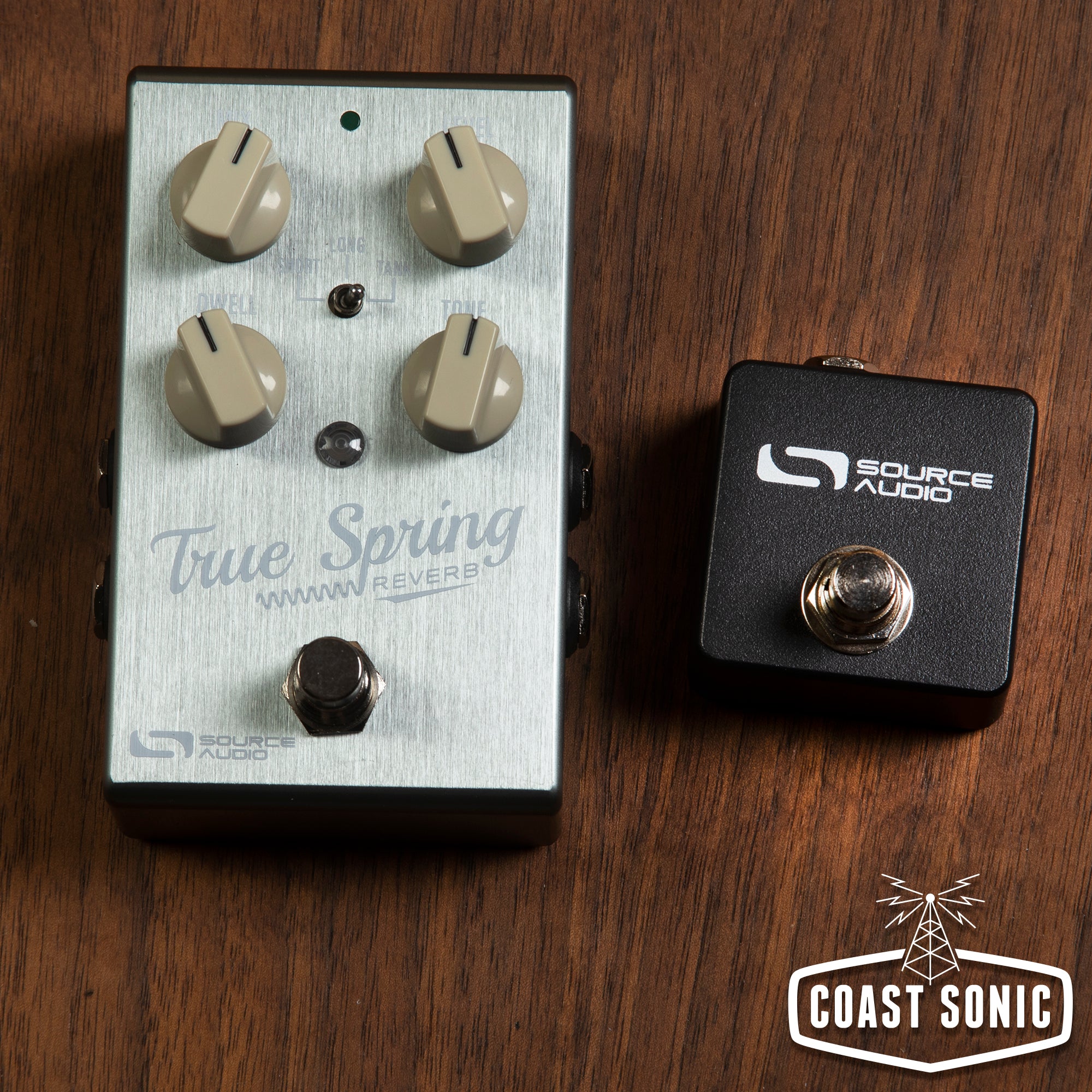

Source Audio True Spring Reverb with Tap Tempo Switch
Maker: Source Audio
Model: True Spring Reverb
The True Spring’s reverb effects are based on a mechanical design originated by the Hammond Organ Company™ in the late 1930s. This stark design uses a pair of input and output transducers to inject an instrument’s dry signal into an actual set of spring coils and capture the very distinct reverberations as the sound bounces back and forth within the springs. Of course, Leo Fender adopted this design in the 1960s with the some of his "blackface" amplifiers and a revolution was born.
Short Spring Reverb: Modeled after the unmistakable twang of "blackface" amplifiers of the 1960s. After extensive research we found tremendous diversity in the spring reverb sounds of a variety of amps. Some offered a tighter, less animated tone while others sounded “drippier,” with longer sustain and livelier reverb trails. The SHORT Spring reverb engine offers a taut sound with a quick decay and smooth trails.
Long Spring Reverb: Produces long and deep reverb decays with noticeable “drip” and highly animated trails. The LONG Spring engine is not as dramatic as the TANK Reverb engine, but does offer an extremely authentic representation of some of the livelier reverb tanks found in vintage combo amps.
Tank Spring Reverb (Outboard Spring): Captures the unmistakable effect of the tube driven outboard spring tanks of the 60s. The sound of reverb tanks like the classic Fender 6G15™ are characterized by their “drippy” attack and animated trail. This original two-spring design produces a bouncing, delay like sound inseparable from the early days of surf rock and spaghetti western soundtracks.
The True Spring Reverb also allows you to combine any of its iconic spring reverbs with any of the pedal's three tremolo effects. The True Spring's tremolos are the same organic effects that originally appeared in our Vertigo Tremolo - the winner of Guitar Player’s “Hall of Fame 2015” and Premier Guitar’s “Premier Gear Award.”
Opto Tremolo: Optical tremolo (a.k.a. “Photocell Tremolo”) is the effect found in many combo amps of the 1960s. This version of tremolo relies upon a neon light bulb and a light dependent resistor called an "optocoupler." The non-symmetrical aspects of the light and the optocoupler give the tremolo a distinct choppy character.
Harmonic Tremolo: This unique effect first appeared in Fender™ “brownface” amps made between 1959 and 1963, which alternately modulated the levels of bass and treble frequencies in the audio signal. The result is a very pleasing and complex tremolo that has characteristics reminiscent of a phaser.
Bias Tremolo: This approach to tremolo involves using an LFO to modulate the bias voltage of the tubes in an amplifier. This essentially pushes the tubes in and out of saturation. The result is a smooth amplitude modulation with a mild overdrive created by the tube saturation.
Three Distinct Spring Reverb and Tremolo Effects.
Two Modes of Operation – Use the pedal in Standard Mode for a classic (non-preset) stompbox experience or turn on Preset Mode and save a user preset (including reverb/tremolo effects and knob positions) to each of the three toggle switch positions.
Flexible Stereo Routing – The True Spring is equally at home in a mono or stereo rig. The pedal’s stereo inputs and outputs offer a variety of routing options such as Stereo to Stereo, Mono to Mono, Mono-to-Stereo, Stereo Sum-to-Mono and External Loop Mode.
Universal Bypass — Select Active Analog (Buffered) or True Bypass.
Secondary Tremolo Controls - Press and hold the CONTROL INPUT button to access the True Spring's tremolo effects (DWELL knob controls tremolo DEPTH / TONE knob controls tremolo RATE / toggle switch selects tremolo type).
Expression Control — Compatible with Source Audio expression pedals and the Hot Hand 3 Universal Wireless Effects Controller. Assign up to three simultaneous parameters with editable depth and direction.
External Tap Tempo – Use the Source Audio Tap Switch to tap in the tremolo rate with a choice of four different beat divisions (quarter, eighth, triplet, and sixteenth).
External Tremolo Engage and Bypass – Use the Source Audio Tap Switch to engage or disengage the tremolo effects on top of an active spring reverb.
Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8” to 1/4” cable for Neuro Mobile App connection.
Power Consumption — 165mA
USB port — Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)
