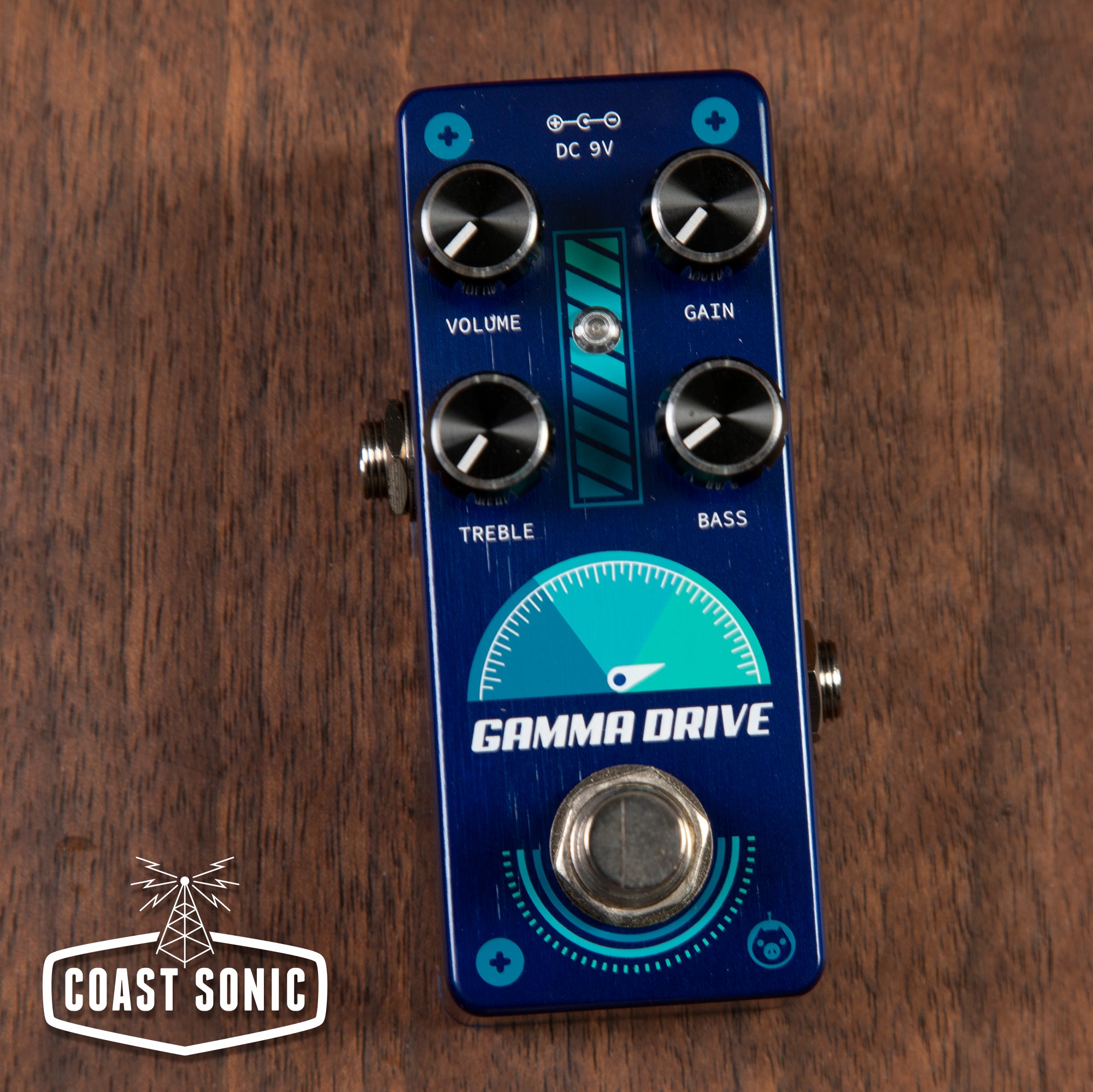

Pigtronix Gamma Drive
31% off

Pigtronix Gamma Drive

$89.00 USD $129.00 USD
By Pigtronix

Maker: Pigtronix

Model: Gamma Drive

Condition: New



Description:

Gamma Drive is a germanium-enhanced overdrive with active Treble and Bass EQ controls. Achieving articulate, touch-sensitive performance characteristics via a unique mixture of germanium, LED and silicon diodes arranged to produce asymmetrical clipping, Gamma Drive offers overdrive rich in 2nd order harmonics, which creates sweet, blooming tone. Offering a range of overdrive from sparkling clean boost to a raging distortion, Gamma Drive was designed for versatile playing across a wide variety of musical genres.

KNOB-BY-KNOB

Gain: Sets the amount of distortion

Volume: Sets the output level

Treble: Boosts or cuts high frequencies centered at 2kHz

Bass: Boosts or cuts low frequencies centered at 80Hz.

TOUCH-SENSITIVE ANALOG DRIVE SPECS

Gamma Drive’s unique mixture of clipping diodes allow for touch-sensitive response, where natural saturation breaks up further as the player digs in. With the addition of a 2-band EQ, players can dial in Gamma Drive with precision, resulting in a lively, amp-responsive tone.

SPECS

VOLTAGE
 9VDC
CURRENT DRAW
 100mA
INPUT IMPEDANCE
 10M
OUTPUT IMPEDANCE
 150ohms

BODY
LENGTH (IN)
 1.5
WIDTH (IN)
 3.75
HEIGHT (IN)
 1.75
WEIGHT (LBS)
 0.5
