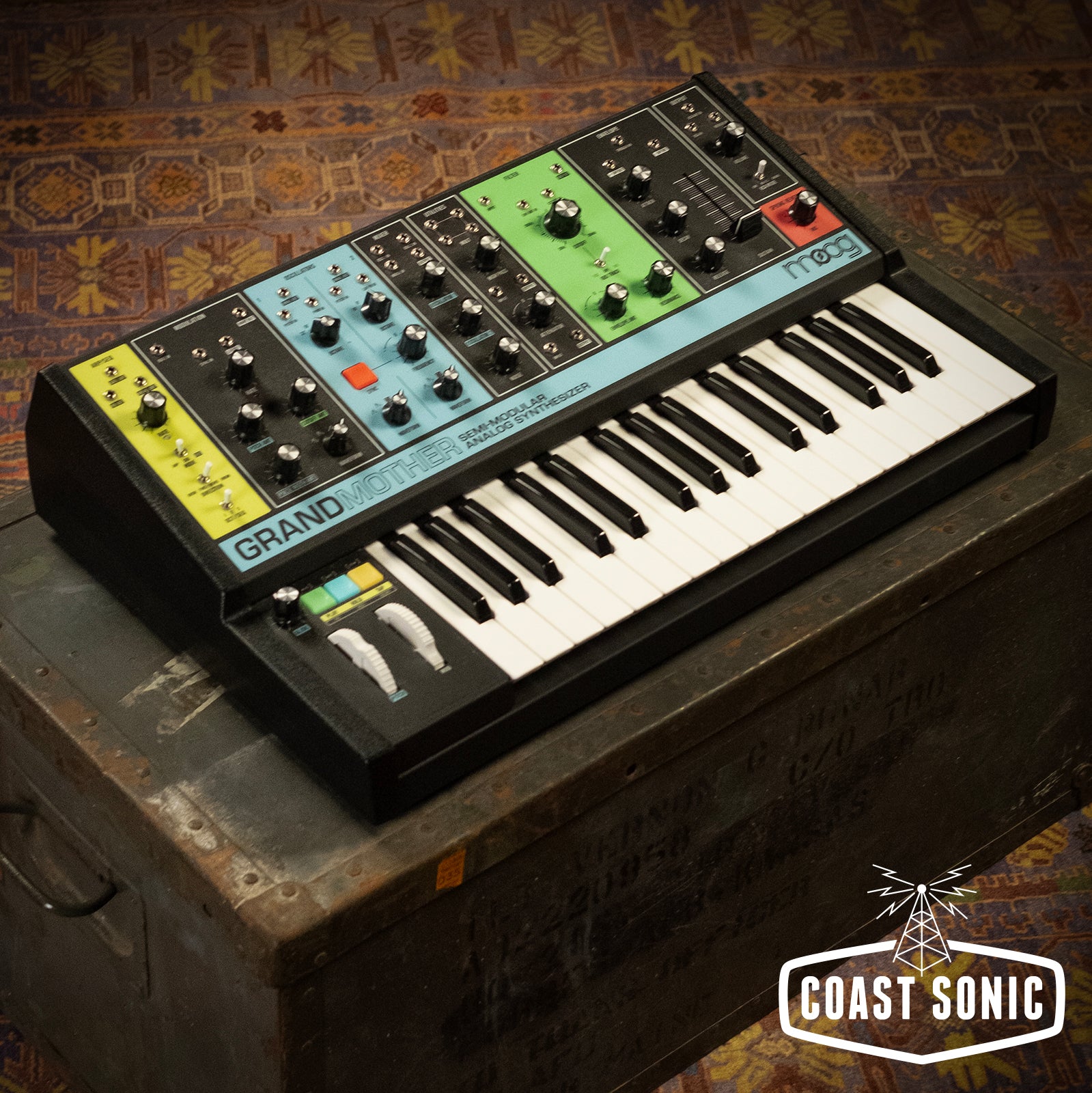

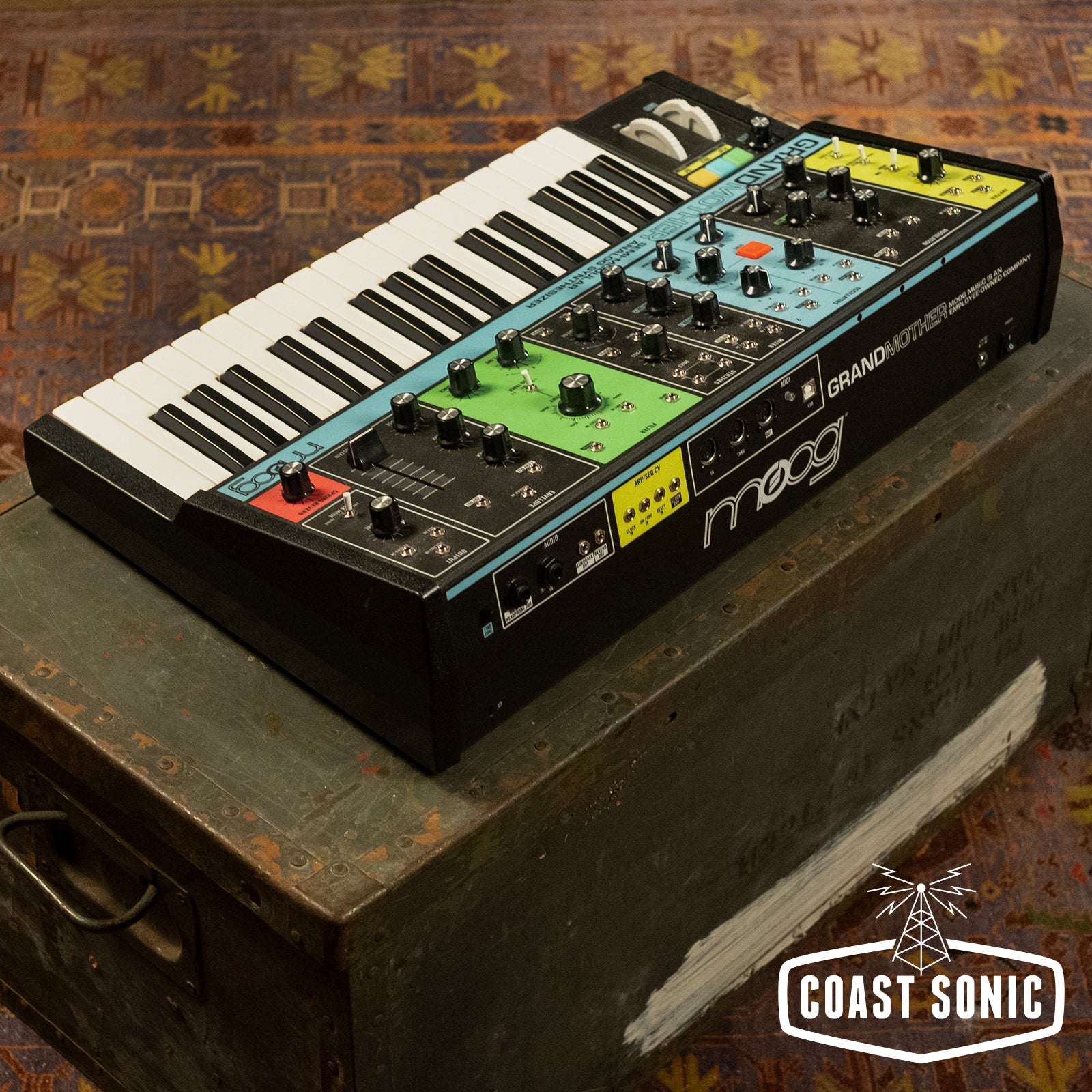

Moog Grandmother 32-Key Semi-Modular Analog Synthesizer w/power, manual & box

$899.00 USD
By Moog

Maker: Moog

Model: Grandmother

Condition: excellent



Description:

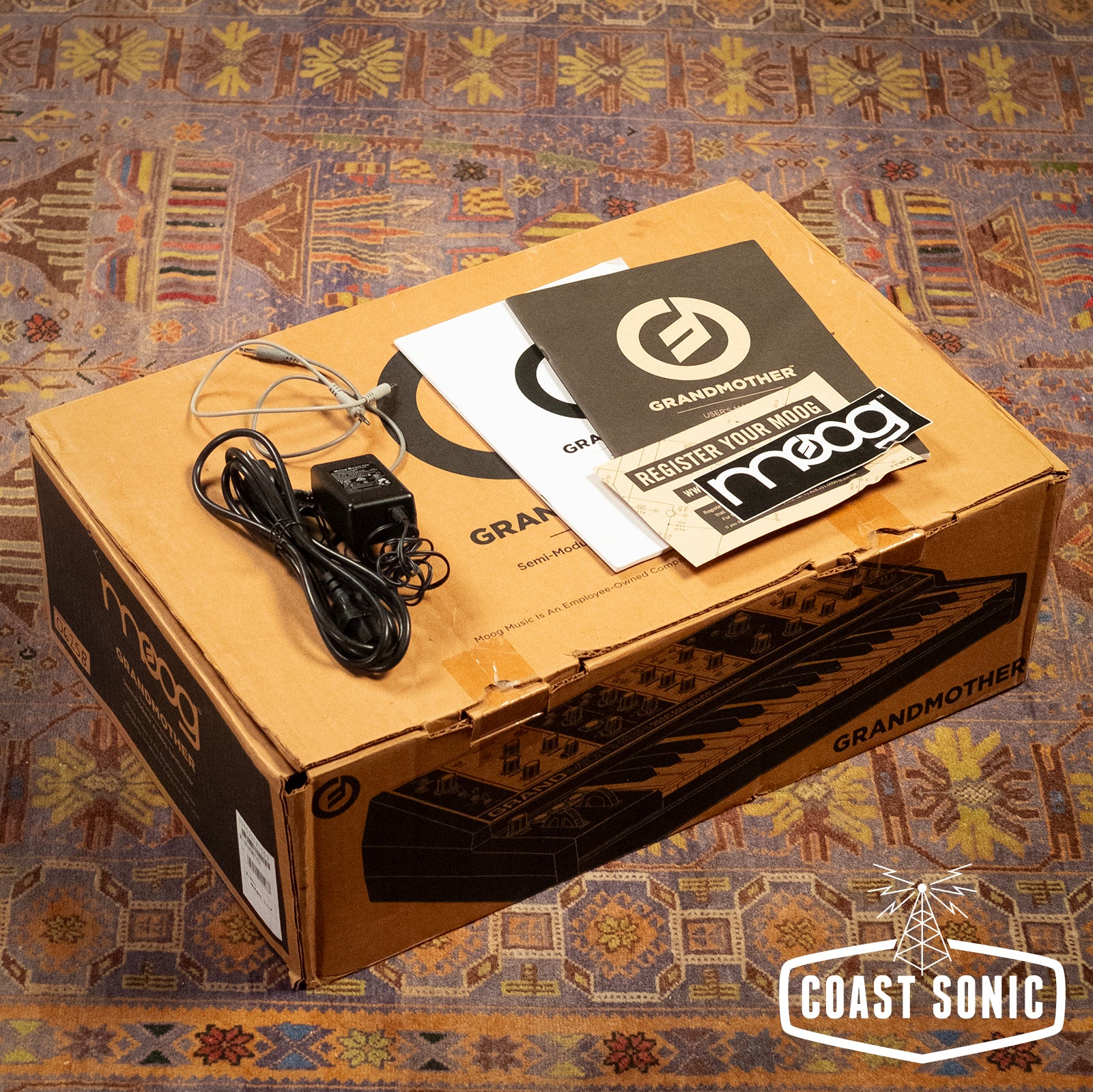

Moog Grandmother Analog Synth is very clean/excellent condition. Includes power supply, original box, patch cables and manuals.

Grandmother is a semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Start playing immediately with “no patching required”, and then explore an infinite sonic playground with Grandmother’s reconfigurable front panel. Grandmother’s circuits, spring reverb, and spirit are inspired by the classic Moog Modular Synthesizers, making this instrument a powerful addition to a Mother-32, DFAM or any Eurorack modular system.

TYPE

Semi-Modular Analog Synthesizer

SOUND ENGINE

Analog

NUMBER OF KEYS

32 Full-Size Keys

TYPE OF KEYS

Velocity-sensing (Velocity signal is not hard-wired – available via MIDI and KBD VEL OUT jack)

OTHER CONTROLLERS

Pitch Bend, Mod Wheel, Variable Glide

POLYPHONY

Monophonic

SOUND SOURCES

2 Oscillators with selectable Waveforms (Oscillator 2 supports Sync to Oscillator 1 plus linear FM), 1 White Noise Generator, External Input jack

VCF FILTER (LOW PASS)
-24dB/Octave Moog Ladder Filter with Resonance (Self-Oscillating)
STATIC FILTER (HIGH PASS)
-6dB/Octave
MOD SOURCES
Modulation Oscillator (Sine, Sawtooth, Ramp, Square), S/H Output, plus Envelope and Key Tracking
ENVELOPE
Four-Stage (ADSR)
ATTENUATOR
Bipolar
MULT
Four Parallel-wired Non-buffered Patch Points
EFFECTS
Spring Reverb
ARPEGGIATOR / STEP SEQUENCER
(256 Steps; three Sequence Files)
PATCH POINTS:
41 x 3.5mm front and rear panels, 21 Inputs, 16 Outputs, 4 Parallel-wired Mults.
AUDIO INPUT
One 1/4” TS jack (Rear Panel)
AUDIO OUTPUT
One 1/4” TRS jack for headphones or line level output (Rear Panel)
MIDI I/O
5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
DIMENSIONS
23” (58.42cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
POWER
Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz
WEIGHT
16lbs. / 7.25kg
