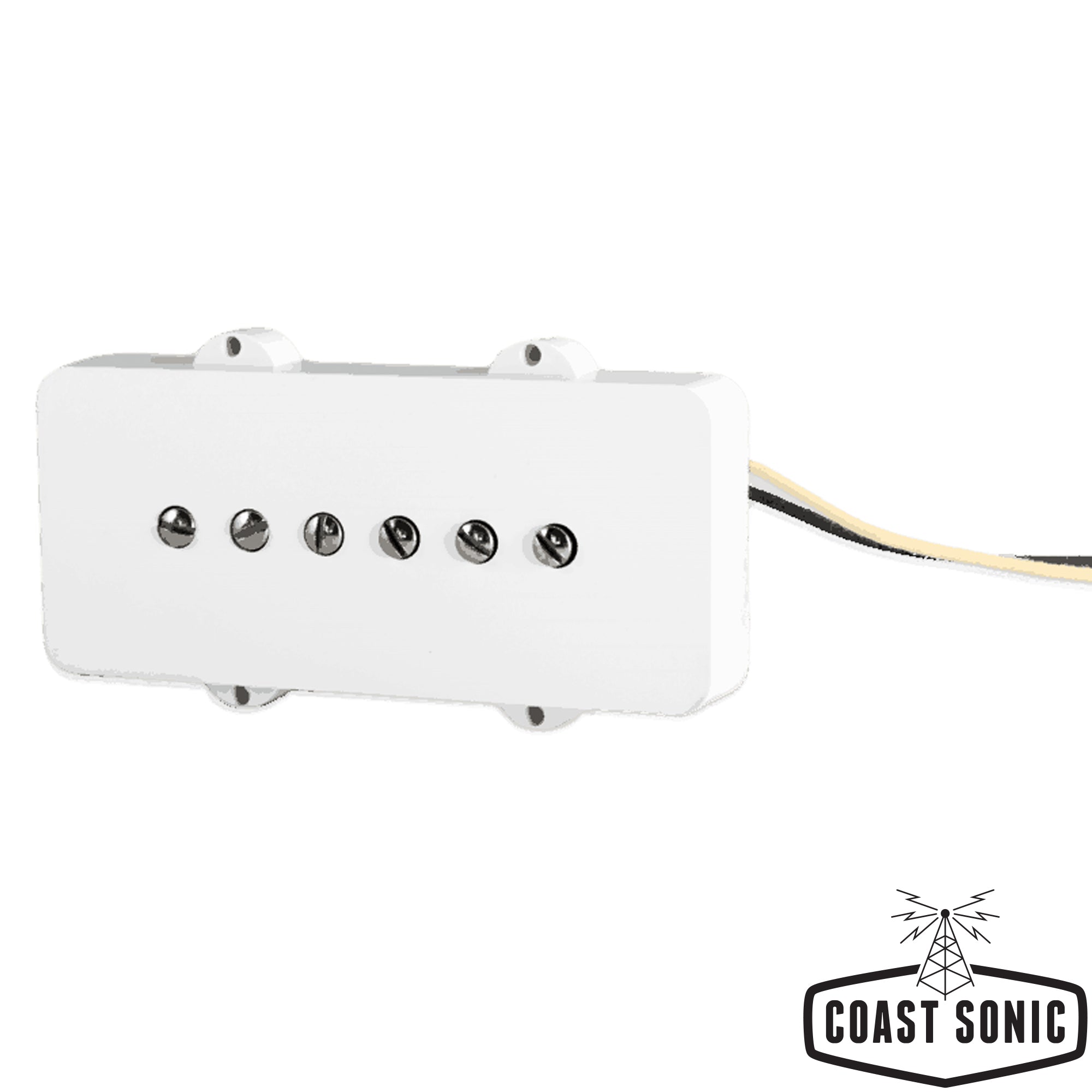

Lindy Fralin Steel Pole Jazzmaster Pickup Set White
Maker: Fralin Pickups
Model: Steel Pole Jazzmaster, stock output
Condition: New
Description:
Lindy Fralin Steel-Pole Jazzmaster Replacements give you an authentic P90 tone for your Jazzmaster. High output, thick mids and aggressive highs, this pickup is quick to get dirty.
STEEL-POLE JAZZMASTER FEATURES:
If you’re looking for an authentic P90 tone for your Jazzmaster, look no further than our Steel Pole Jazzmaster Pickups! These pickups will deliver a solid P90 sound, with Jazzmaster looks. These pickups offer a familiar P90 attack, featuring a thick midrange and clear highs.
By designing this set with USA-Made Alnico 4 Bar Magnets and 43-Gauge Wire, we can provide you with all of the P90 tone, attack, and snarl you could hope for.
FEATURES:
- A replica of a P90, with Jazzmaster looks
- Bold and robust midrange for a familiar snarl and attack
- USA-made Alnico 4 Bar Magnets for aggressive tone and output
- Compensated Bridge output for even volume across all pickups
- RW/RP Neck pickup for hum-canceling on the middle position
- Adjustable USA-Made Steel Pole pieces for fine-tuning string balance
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built for unrivaled quality control, and inspected three times during the manufacturing process
- 10-Year Warranty on manufacturing defects
TECH SPECS
See below for the estimated DCR and Polarity Information for our Steel-Pole Jazzmaster.
SPECIFICATION | VALUE |
---|---|
Neck Ohm Reading: | 7.2K |
Bridge Ohm Reading: | 8.2K |
Neck Polarity: | Counter-Clockwise Coil Direction, North To Strings |
Bridge Polarity: | Clockwise Coil Direction, South To Strings |
Magnets: | USA-Made Alnico 4 Bar Magnets |
Pole Pieces: | Steel |
Coil: | USA-Made 42-Gauge Single Poly Nylon |
Recommended Pot Value: | 500K |
String Spacing: | 52mm |
Recommended Cap Value**: | 0.02mfd |
