Hungry Robot Modular VCO


Maker: Hungry Robot

Model: VCO

Condition: New



Description:



DESCRIPTION

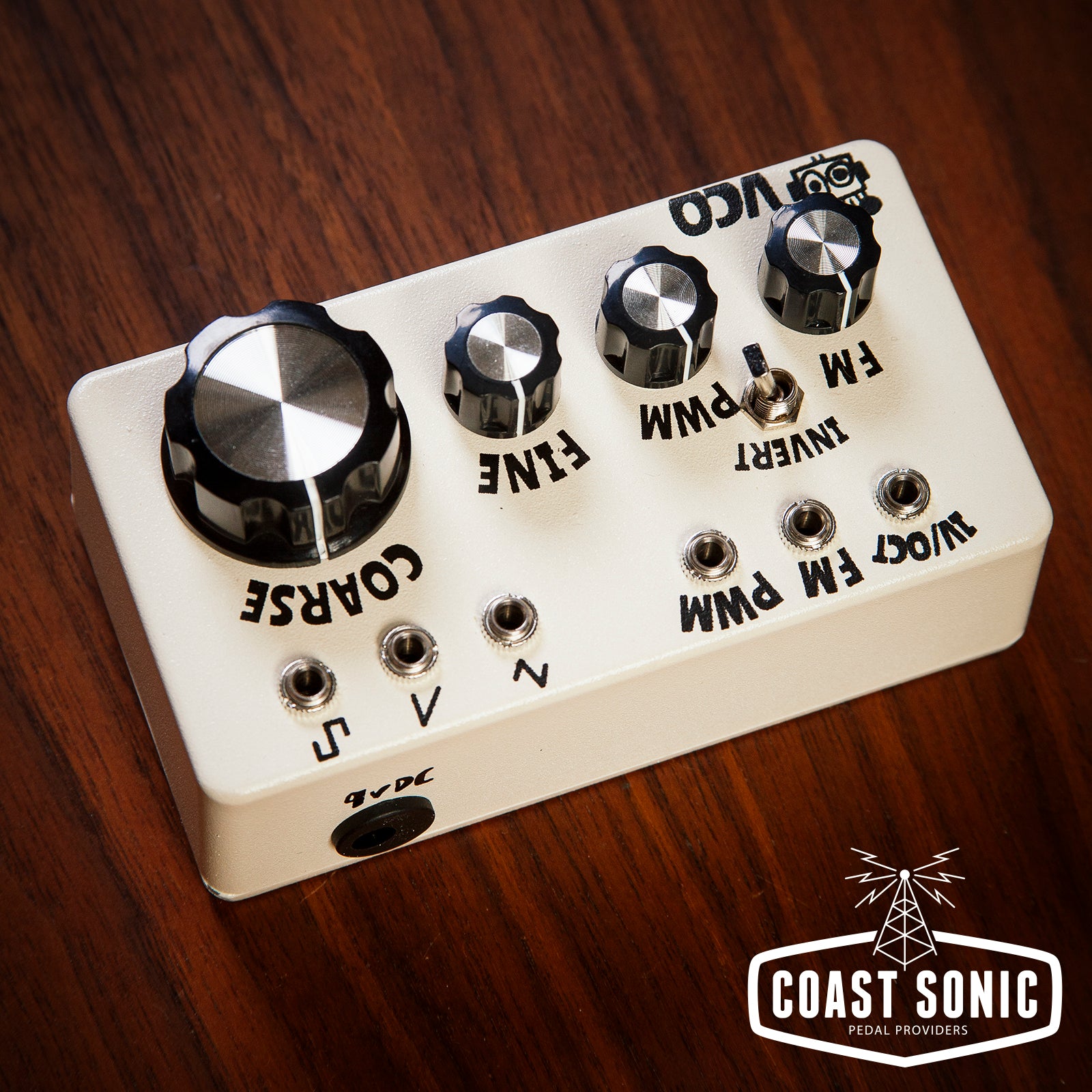

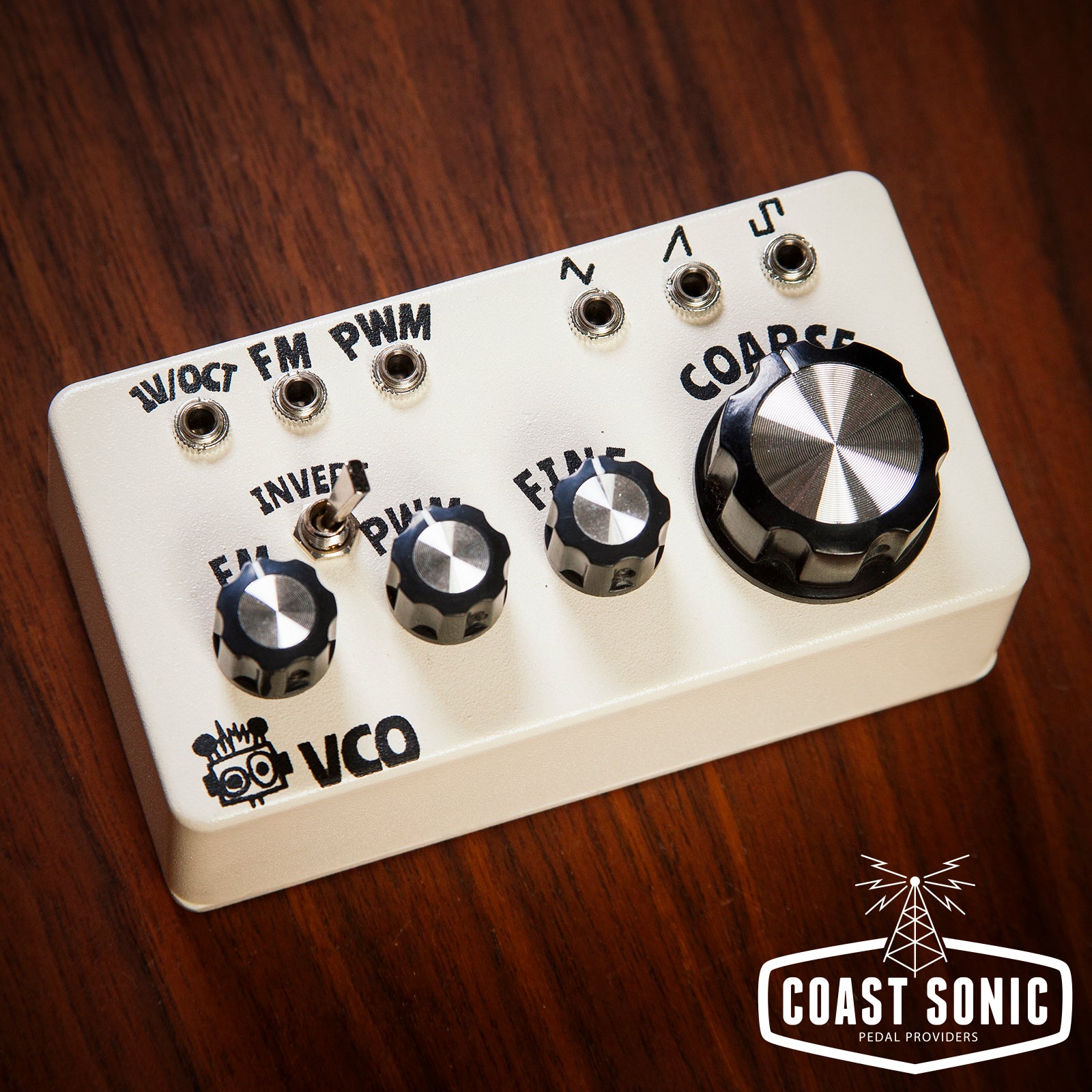

     The Hungry Robot VCO is an all-analog, low cost, workhorse of a VCO.  It can output triangle, sawtooth, and square waveforms simultaneously with tremendous bass response.  The VCO has exceptional 1V/OCT tracking with FM modulation.  The FM modulation input has a built-in CV attenuator as well as an inversion switch.  The square wave has PWM with a built-in CV attenuator.  As with all Hungry Robot "Modular Boxes" the VCO can be powered with a simple 9V DC, Negative Center power supply.


KNOBS

   -COARSE:  Provides a wide sweep of output frequencies
   -FINE:  Provides a narrow sweep of output frequencies for fine tuning

   -PWM:  Attenuator for the PWM CV input.

   -FM:  Attenuator for the FM CV input

SWITCHES
   -INVERT:  Inverts the incoming FM CV input.  Toggle to the right to invert incoming CV


PATCH POINTS

   -1V/OCT:  Input for 1V/OCT tracking
   -FM:  CV input for Frequency Modulation

   -PWM:  CV input for Pulse Width Modulation

   -TRIANGLE:  Triangle waveform output
   -SAWTOOTH:  Sawtooth waveform output

   -SQUARE:  Square waveform output



Dimensions: 4.7” x 2.6” x 1.5”

Power: 9V DC - Negative Center - 2.1mm Barrel

(ISOLATED SUPPLY PREFERABLE)
