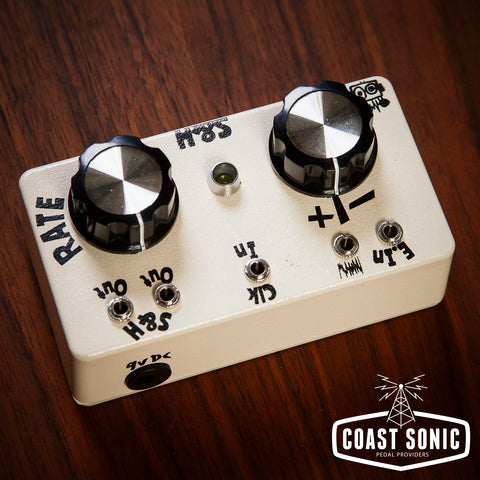

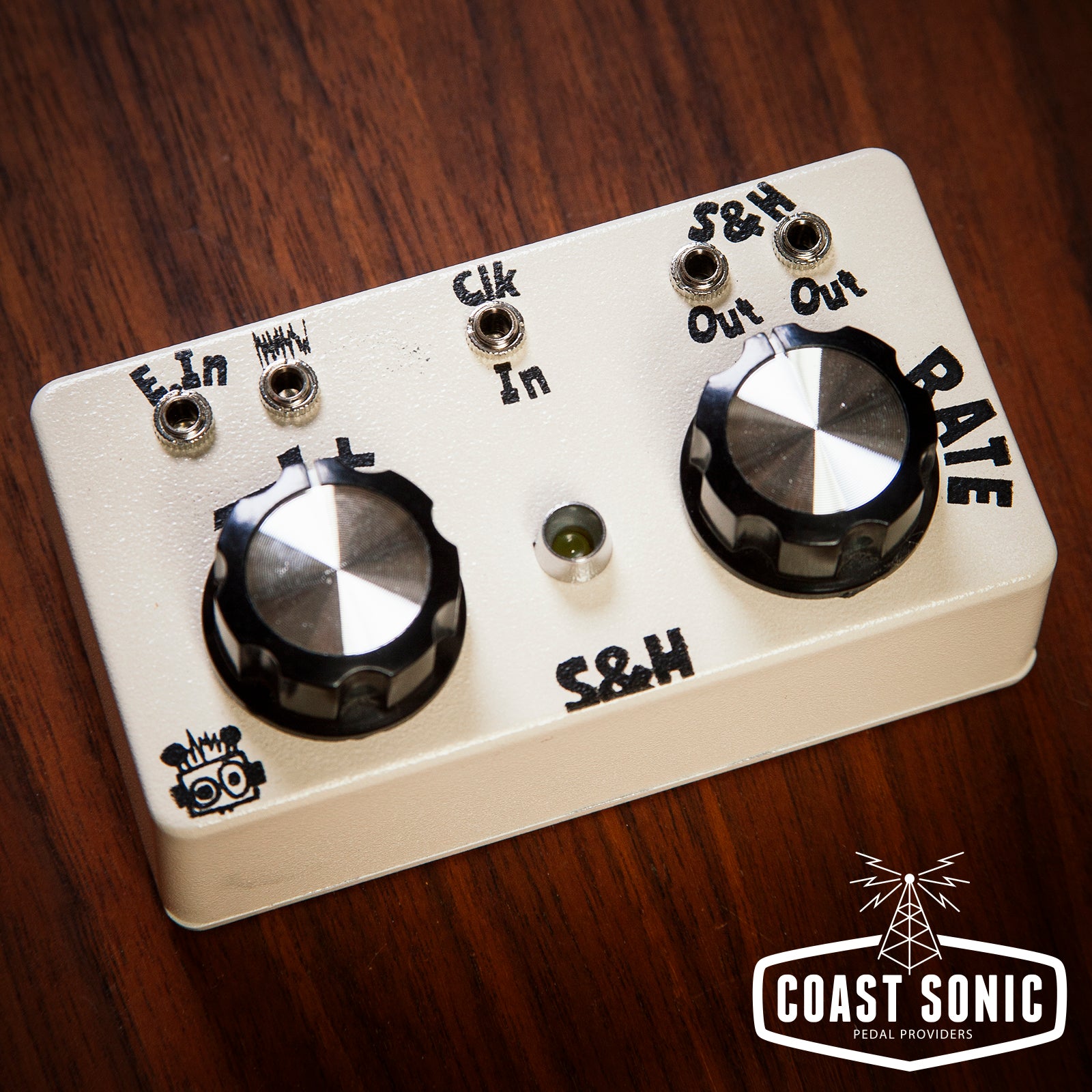

Hungry Robot Modular SAMPLE & HOLD


Maker: Hungry Robot

Model: SAMPLE & HOLD

Condition: New



Description:

 The Hungry Robot Sample & Hold provides basic S&H functionality with some added bells and whistles.  It uses an internal clock dialed into a very useful range.  If the internal clock rate is not to your liking, you can bypass the Rate knob by patching a clock signal into Clk In.  The Sample & Hold has a built in attenuverter giving a bit of added control over the random voltages that are outputted.  White noise out for uses elsewhere.  Traditionally a S&H samples voltages from chaotic white noise, but E.In allows you to bypass the white noise and patch in your own sample source (i.e. patching an LFO in for a bit crushed LFO).  As with all Hungry Robot "Modular Boxes" the Sample & Hold can be powered with a simple 9V DC, Negative Center power supply.


KNOBS

   -MINUS/PLUS:  Attenuverter for output.  Allows you to sweep between positive and negative voltage outputs.

   -RATE:  On board clock source ranging from approximately 25ms to 1000ms.



PATCH POINTS

   -E.IN:  Bypasses internal white noise as a sample source.  Patch in any CV source that you want to sample from

   -STATIC:  Taps into white noise output (0-5V range)

   -CLK IN:  Bypasses internal clock with your provided external clock
   -S&H OUT:  Two buffered outputs of S&H voltage



Dimensions: 4.7” x 2.6” x 1.5”

Power: 9V DC - Negative Center - 2.1mm Barrel

(ISOLATED SUPPLY PREFERABLE)
