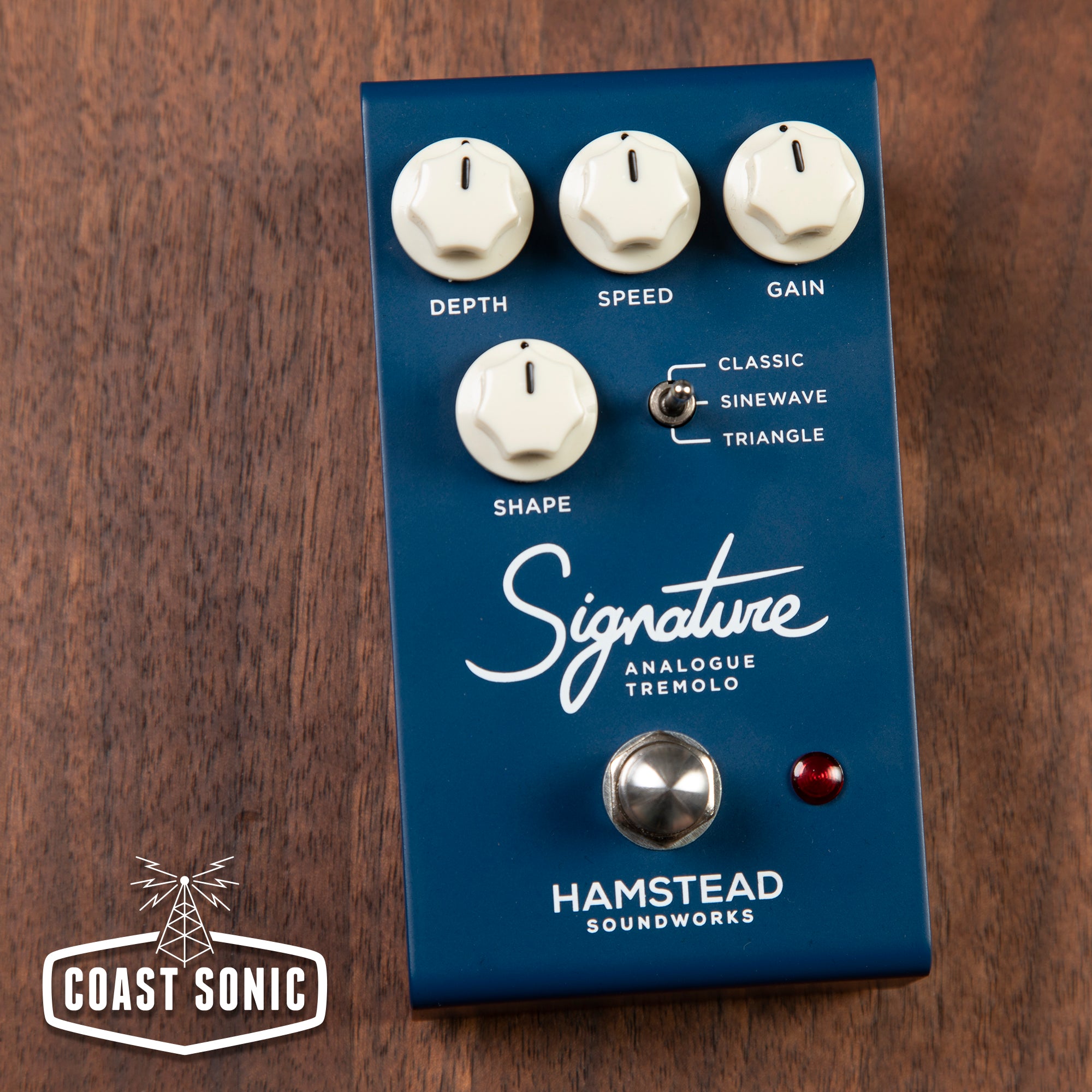

Hamstead Soundworks Signature Analog Tremolo

Name: Hamstead Soundworks Signature Analog Tremolo
Brand: Hamstead Soundworks
SKU: HMS006
Price: 329.00 USD
Availability: InStock

$329.00 USD

Maker: Hamstead Soundworks

Model: Signature

Condition: New

Description:

ANALOG WAVEFORM PERFECTION

Tremolo is one of the earliest effects to be applied to the electric guitar, and its timeless quality has ensured its popularity across many genres throughout the years. Signature Analogue Tremolo is our take on this classic effect, created with the refined analogue engineering that Hamstead Soundworks is known for.

The MkII Signature Tremolo takes our Signature ‘Sinewave’ circuit straight out of the Artist +RT series amplifiers and packages it into a pedalboard-friendly format. This is coupled with two additional tremolo modes, and the features of Wave Shaping, and expression & speed control pedal support.

OVERVIEW

Our Signature ‘Sinewave’ mode is a true sinusoidal waveform for the cleanest, smoothest and most musical sounding tremolo. Switch to ‘Classic’ mode for a more vintage feel, replicating the familiar tremolo sounds found in vintage amplifiers and thousands of seminal records from the 1950s to the present day. The MkII model adds ‘Triangle’ mode which is far more natural sounding than the angular name suggests, and is particularly useful when used with the Shape control.

The Shape control is another new feature for the MkII and allows the ability to tilt any of the waveforms to the left or right. In Triangle mode this can create both up and down sawtooth waveforms for more modern tremolo effects, and can really accentuate the thump of output bias style tremolo in Classic mode.

Signature Sinewave Tremolo

Triangle Waveform

Expression & Speed Control Pedal Support

Classic "Output Bias" Tremolo

Shape Control & Sawtooth Waveforms

10dB of Clean Boost

ADDITIONAL FEATURES

With speeds ranging from 0.4 to 15Hz controllable either by the Speed control, external expression pedal, or high/low speed remote, this pedal offers superb versatility and playability. The Depth control sets the level of the effect from subtle modulation movement that you’ll never want to turn off, through to aggressive side-chain style pumping volume.

The feature set is rounded off by a Gain control that can provide a boost of up to 10dB to really accentuate the tremolo effect or even push the front end of an amplifier. All of the waveform modes have the same internal compensation against perceived volume loss as the Artist series amplifiers, allowing you to use the Gain simply as a boost if desired.

An all-analogue design by Peter Hamstead.

Signature Analogue Tremolo features an optical OptoKick footswitch from our friends at TheGigRig, for silent and reliable switching.

SPECIFICATION

All-analogue design (including waveform creation)
Dimensions: 70w x 130d x 65h mm (inc. hardware)
Weight: 550g / 1.2lbs
Power Requirement (From Serial No. 147):
DC (centre negative)
9V - 250mA or 12V - 180mA or 18V - 120mA
Power Requirement (Up to Serial No. 146):
DC (centre negative)
9V - 450mA or 12V - 250mA or 18V - 180mA
Input Impedance: 500K Ohms
Output Impedance: < 300 Ohms
Warranty: 5 Year Limited Warranty
Designed and built in Great Britain
