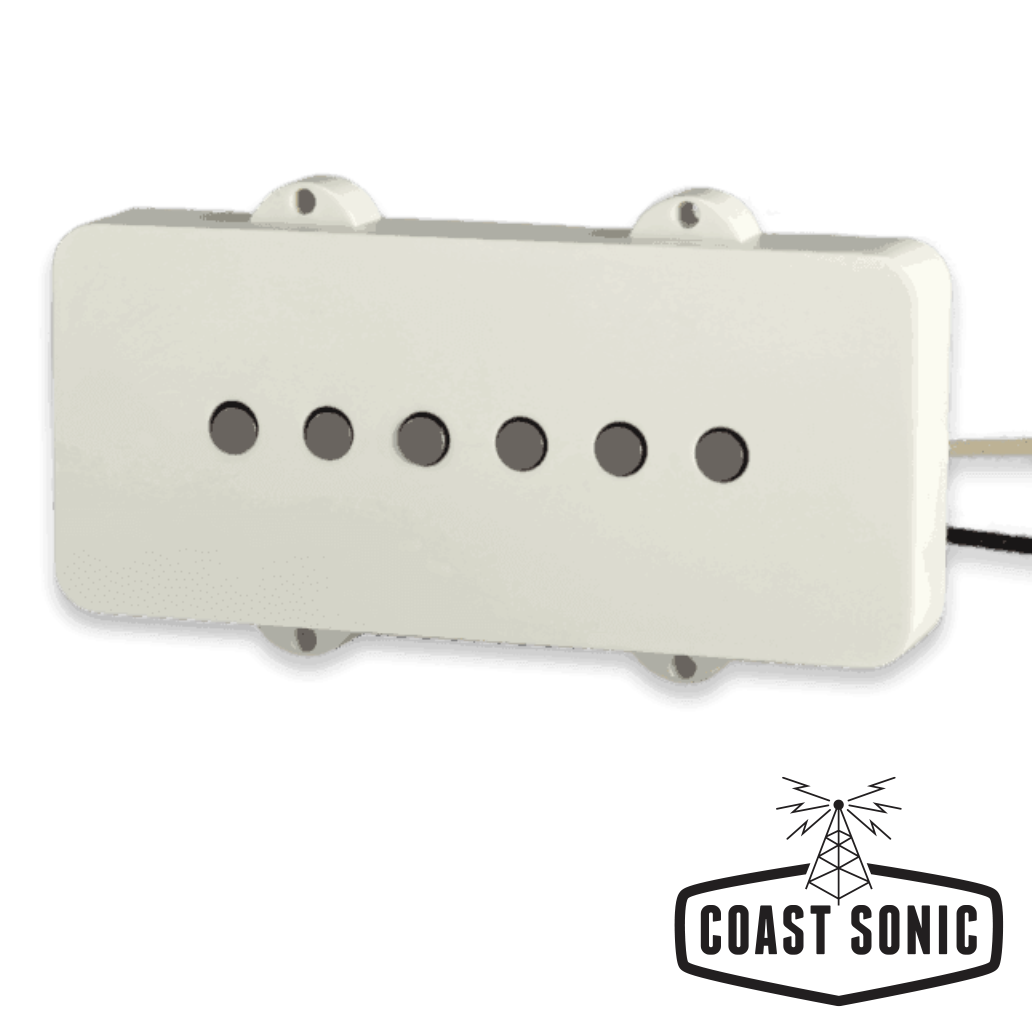

Lindy Fralin Jazzmaster Pickup Set White


Maker: Fralin Pickups

Model: Jazzmaster

Condition: New



Description:

Take the tone of your Jazzmaster to the next level with a set of Fralin Jazzmaster Pickups. We have two winding options:  choose between clean and clear to thick and beefy. All USA-Made, assembled & wound by hand.

You know the tone of the famous Jazzmaster. Its unique pickup design gives the guitar a completely unique sound. Unlike a Tele or a Strat, the Jazzmaster is famous for having a large, flat coil, and shorter magnets. These unique attributes change the tonal characteristics of this pickup. To give our pickups a balance of clarity and output, we hand-build and wind them using our “sectioning” technique.

FEATURES:

  • Original Fender specifications, with modern output
  • Clean and clear, lots of Fender sparkle and twang
  • USA-made Alnico 5 Magnets for optimal tonal balance and output
  • Compensated Bridge for even volume across all pickups
  • Two magnet staggers available for different fingerboard radiuses
  • Hand-wound with our “Sectioning” technique for unique, dynamic tone
  • Hand-built fiberboard Bobbins for unrivaled quality control
  • 10-Year Warranty on manufacturing defects

Sound

You can expect a larger-than-life, thick tone that is well-balanced across the spectrum. Expect enhanced clarity, definition, and pick-attack. Lows are loud and clear. Highs have a round top-end, without the sharpness found in other guitars. Single notes will have a nice, solid sonic footprint without sounding thin. We use 42-gauge Heavy Formvar wire and AlNiCo V magnets to give this pickup a beefy, thick tone that you will love. Depending on which output you choose, the tone will change. If you want the cleanest tone, opt for Stock output. If you want something a little darker and thicker, go for the +5% Output.

It all starts here: Our manufacturing process allows us to achieve unparalleled quality control. These Jazzmaster Pickups consist of local fiberboard and USA-Made Alnico 5 Magnets. We wind each pickup by hand, one at a time. Each pickup is wound using our proprietary “Sectioning” technique. This gives the pickup a sweet, clear tone. Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics.

Tech Specs

SPECIFICATION VALUE
Neck Ohm Reading: 7.4K
Bridge Ohm Reading: 8.4K
Neck Polarity: Clockwise Coil Direction, South To Strings
Bridge Polarity: Counter-Clockwise Coil Direction, North To Strings
Magnets: USA-Made Alnico 5
Wire: USA-Made 42-Gauge Formvar / USA-Made 42-Gauge SPN
Recommended Pot Value: 250K, 500K, 1Meg*
String Spacing: 52mm
