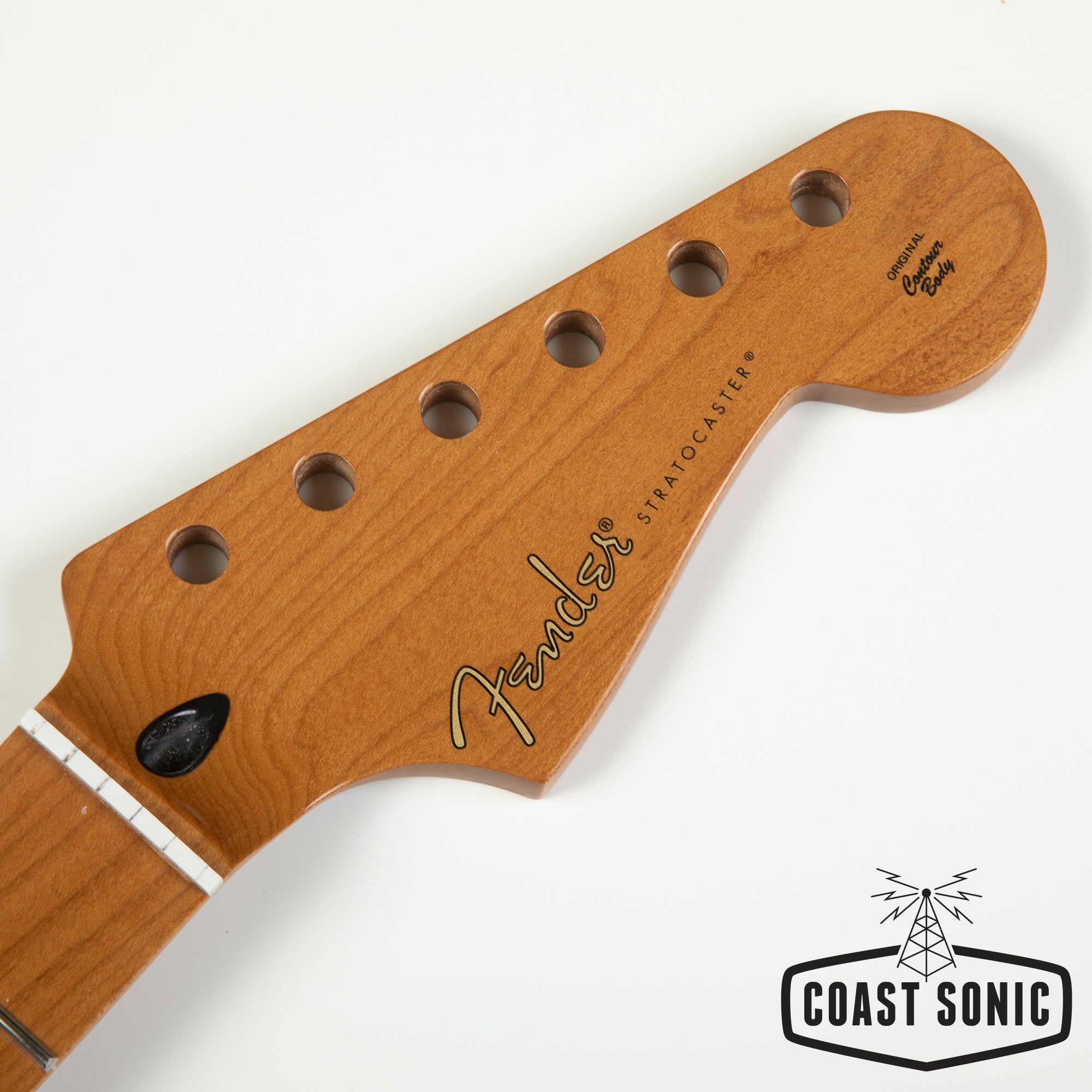

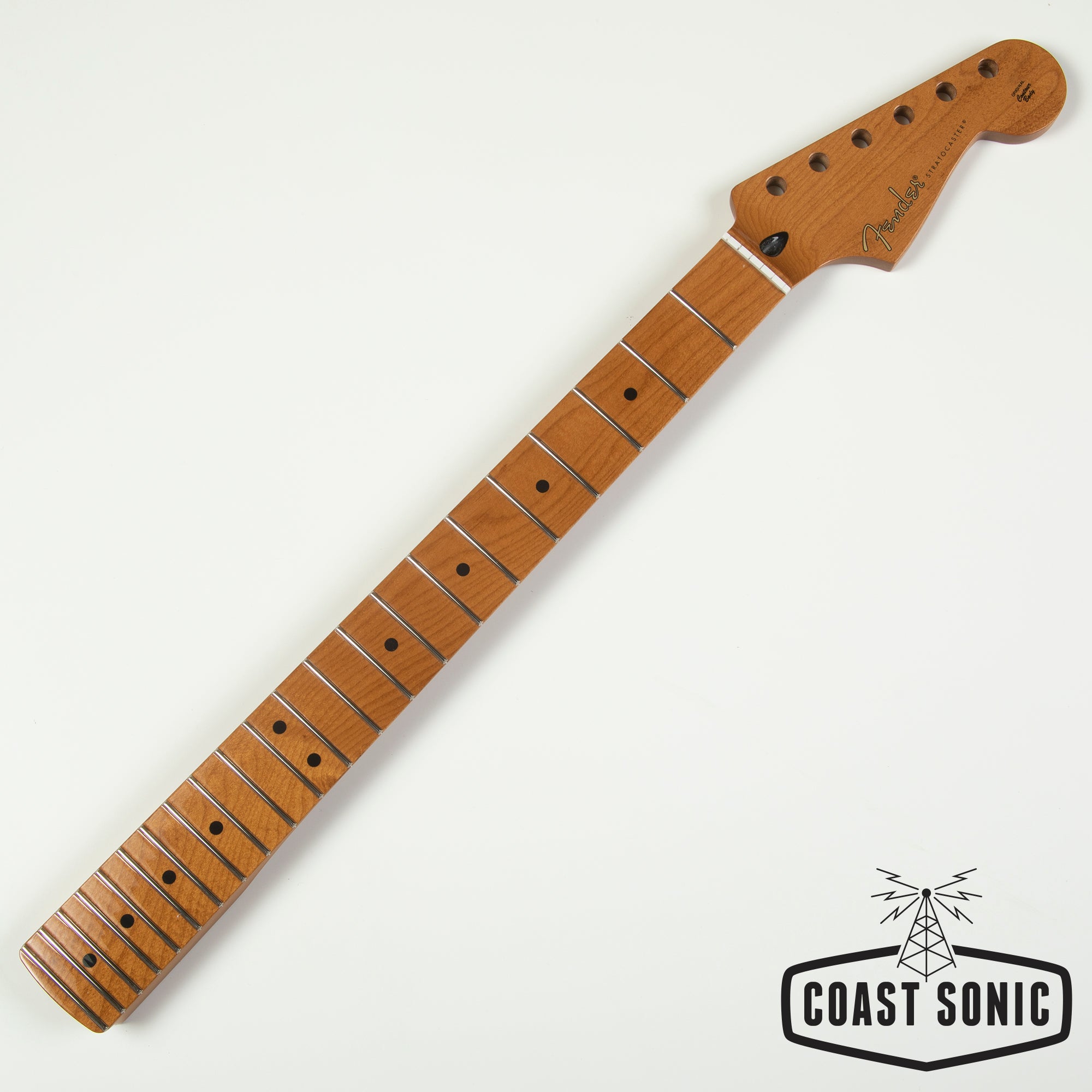

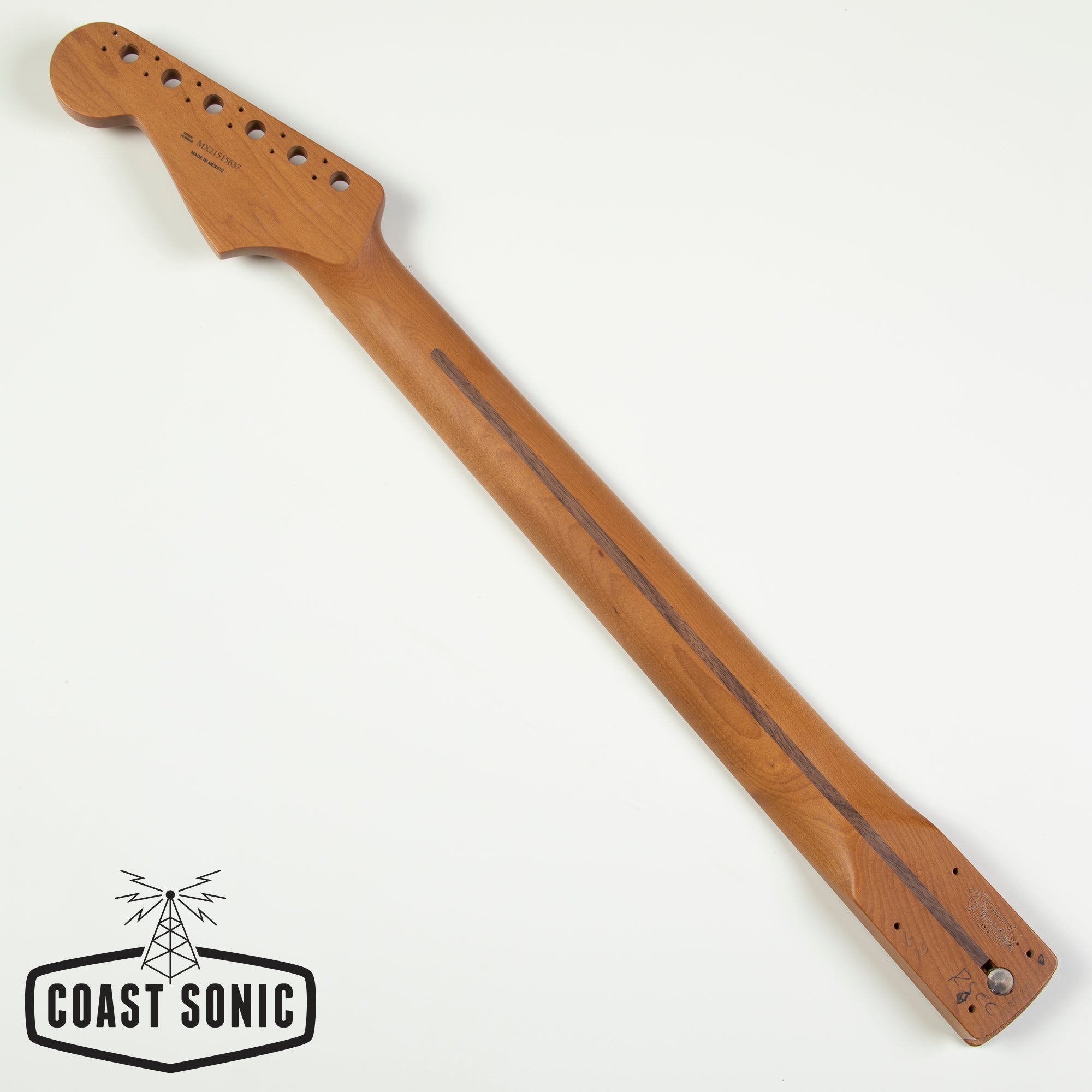

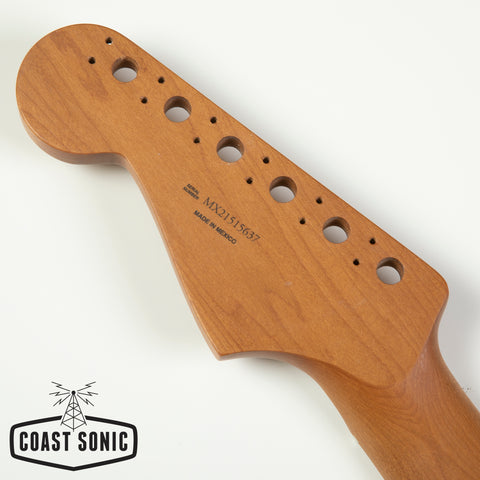

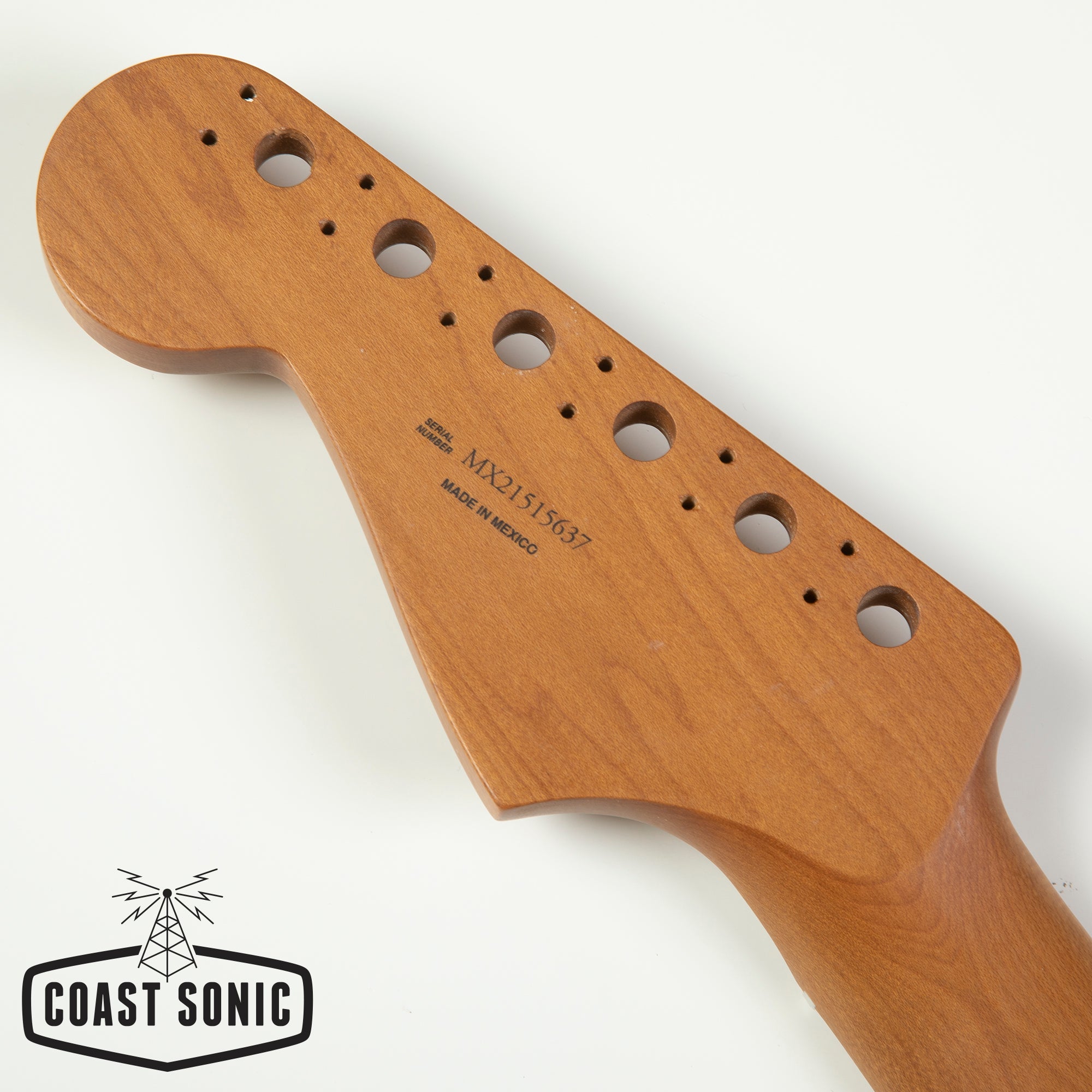

Fender Roasted Maple Stratocaster Neck- Flat Oval

There’s no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument’s voice.

This genuine Fender Stratocaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Flat Oval"-shaped profile and 12"-radius maple fingerboard with 22 jumbo frets, this neck was designed for pure speed. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Strat® authentic Fender feel, this replacement neck even sports our famous “spaghetti” logo on the headstock.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

GENERAL

• Style
  Modern
• Neck Shape
  Flat Oval
• Tuner Mounting Config
  Dual Guide Pin

MATERIALS

• Fingerboard Material
  Maple
• Neck Material
  Roasted Maple
• Nut Material
  Synthetic Bone
• Position Inlays
  Black Dot
• Neck Finish
  Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
• Truss Rod Nut
  3/16" Hex Adjustment
• Truss Rod
  Standard

MEASUREMENTS

• Fingerboard Radius
  12" (305 mm)
• Scale Length
  25.5" (648 mm)
• Nut Width
  1.6875" (42.86 mm)
• Number of Frets
  22
• Fret Size
  Jumbo
• Neck Thickness
  1st Fret - .752” (19.10 mm), 12th Fret - .830” (21.08 mm)
• Peg Hole Diameter
  .397" (10.08 mm)
