Fender Classic Series '70s Stratocaster Neck
Couldn't load pickup availability
Maker: Fender
Model: Classic Series '70s Stratocaster Neck
Condition: New
Description:
*Note: Stock photo- Grain pattern may vary. Please message us if you would like photos of the neck that would be shipped to you.*
Coast Sonic is an authorized Fender dealer.

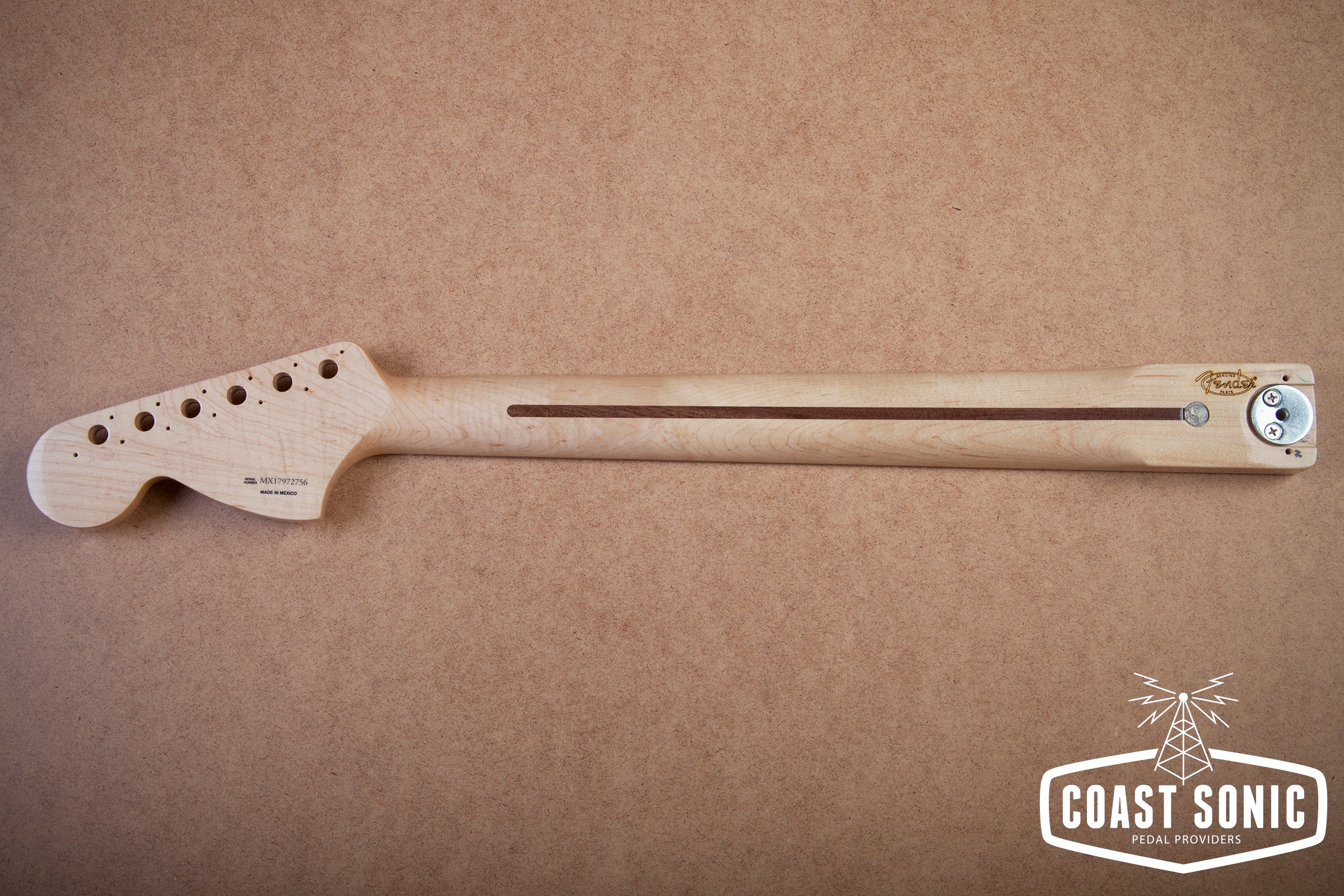

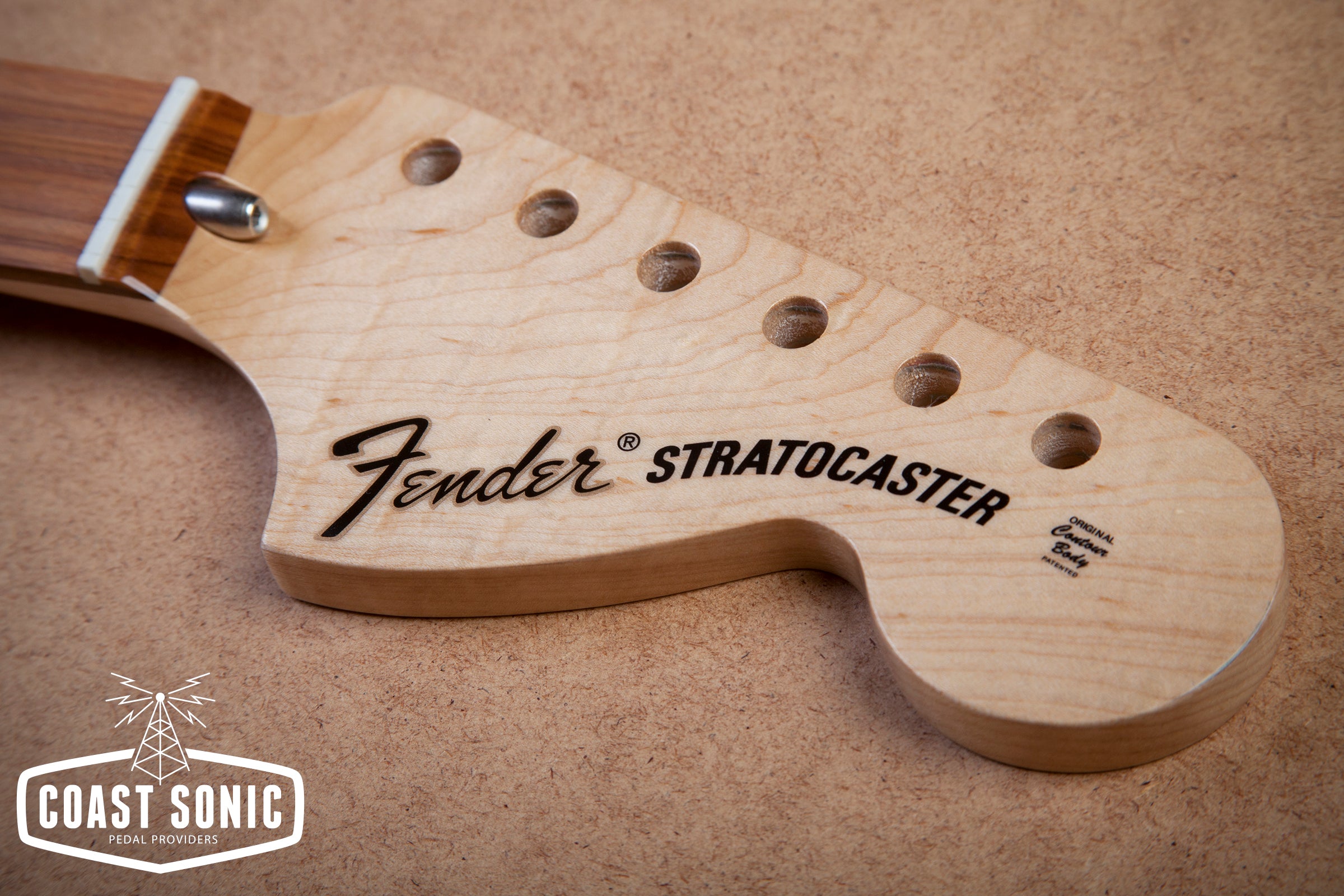

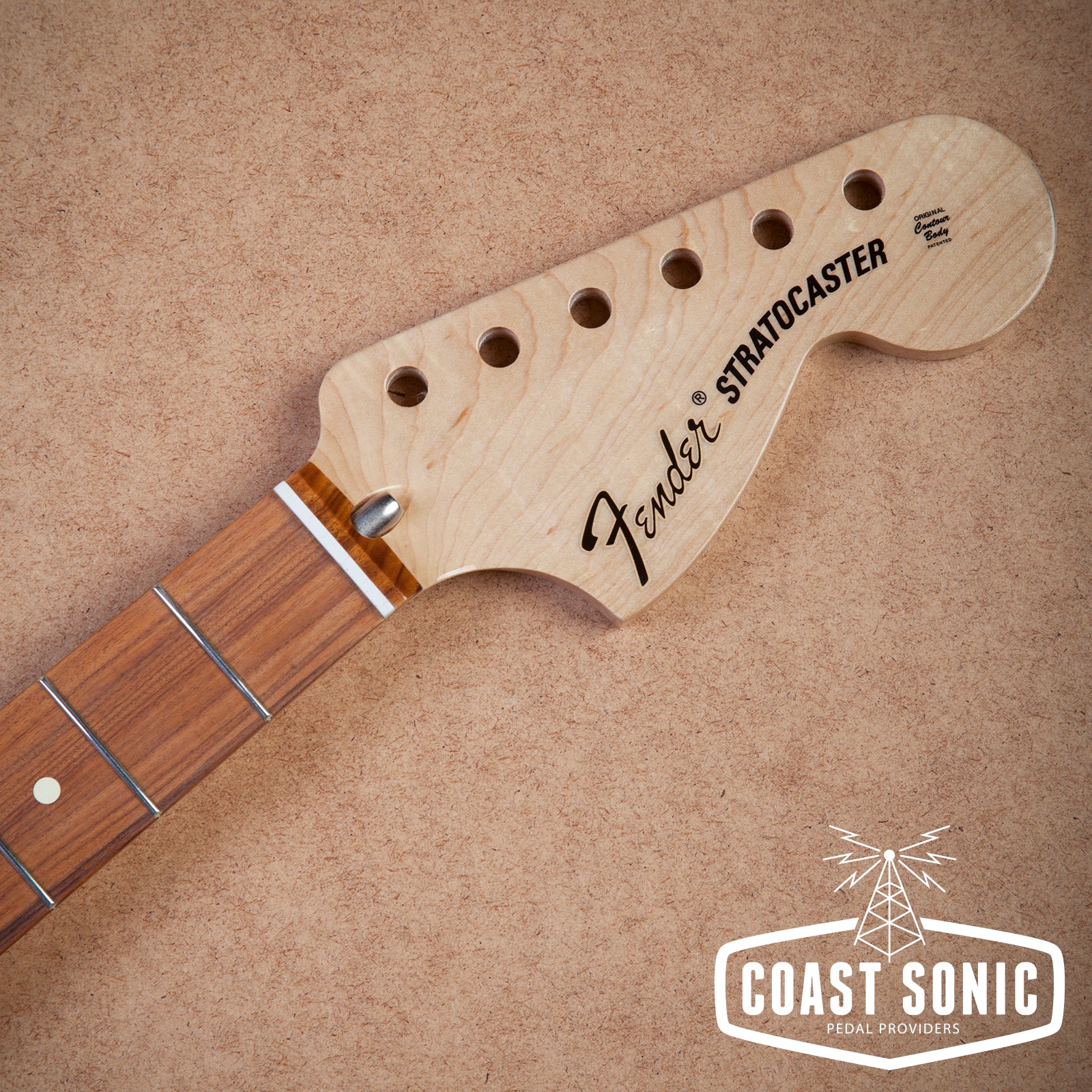

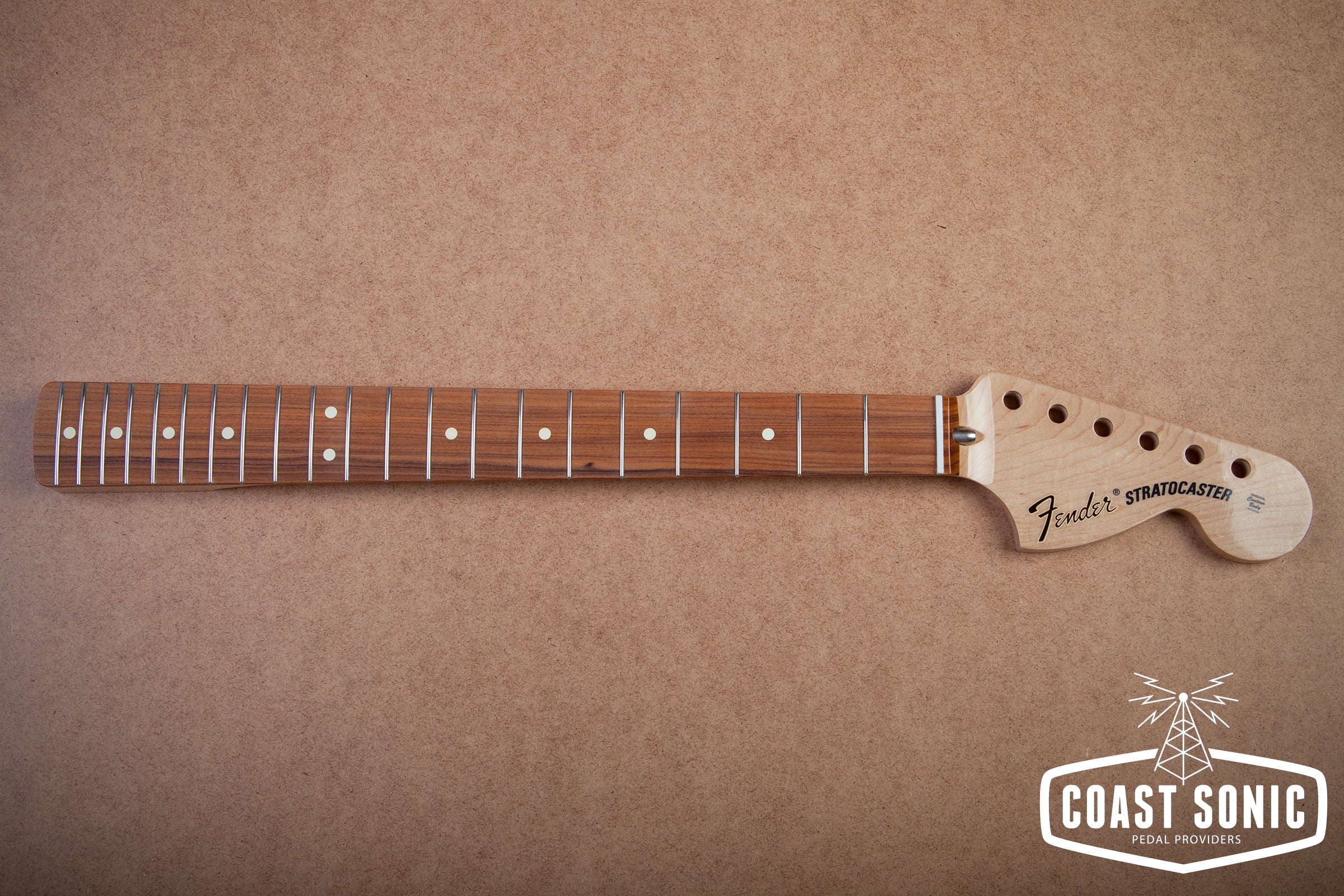

Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style 3-bolt Stratocaster® guitar neck features a comfortable "U"-shaped profile and 7.25"-radius maple fingerboard with 21 vintage-style frets. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, while a gloss urethane finish on the back offers smooth playability.
GENERAL
-
StyleVintage-Style
-
Neck Shape"U" Shape
-
Tuner Mounting ConfigVintage-Style 2-Screw
-
Other FeaturesEach nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
-
Where UsedClassic Series
MATERIALS
-
Fingerboard MaterialPau Ferro
-
Neck MaterialMaple
-
Nut MaterialSynthetic Bone
-
Position InlaysWhite Dots
-
Neck FinishGloss Urethane
-

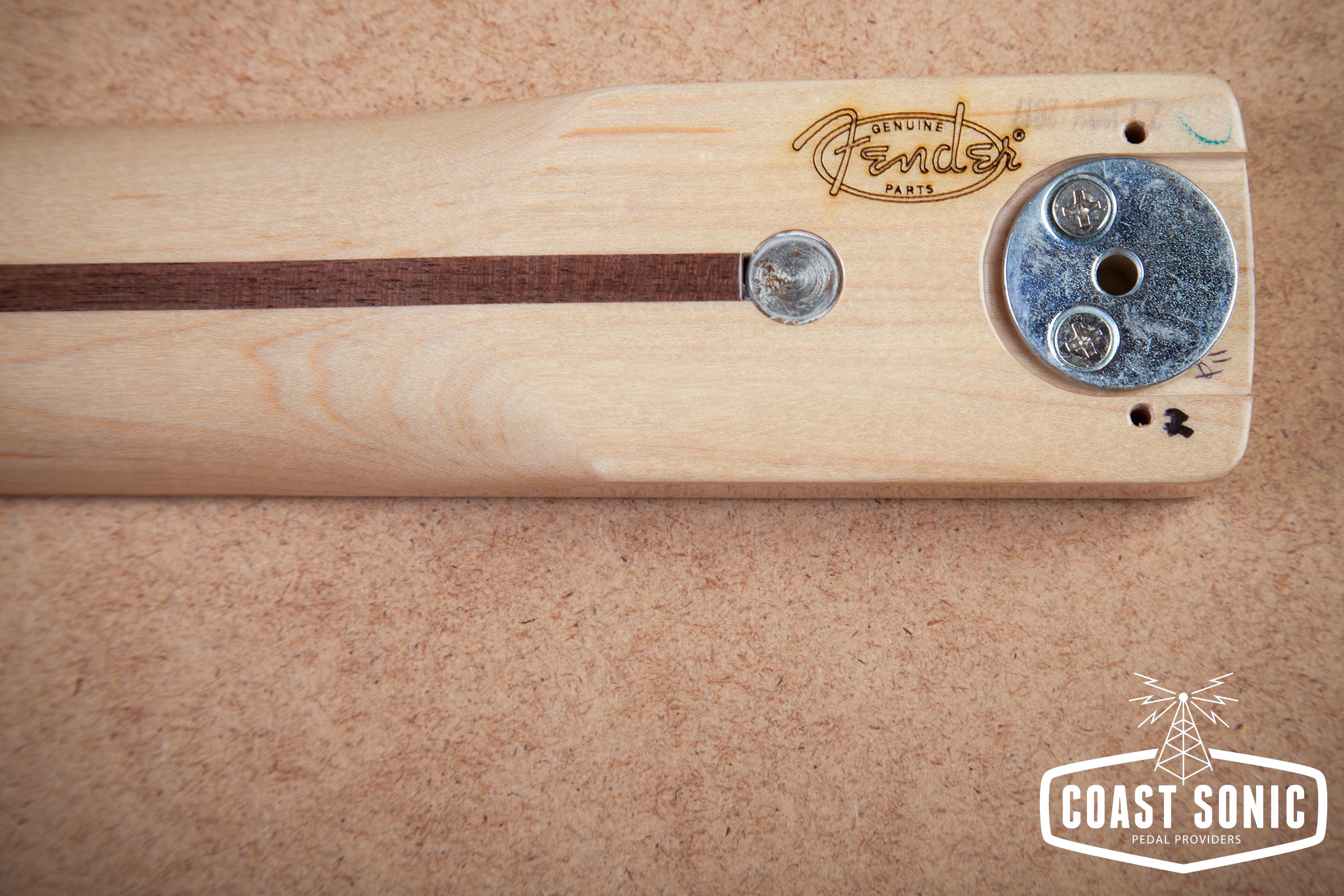

Truss Rod NutBullet Style
-
Truss RodBullet Style
MEASUREMENTS
-
Fingerboard Radius7.25" (184.1 mm)
-
Scale Length25.5" (648 mm)
-
Nut Width1.650" (42 mm)
-
Number of Frets21
-
Fret SizeVintage Style
-
Headstock Thickness.540" (13.71 mm)
-
Neck Thickness1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
-
Peg Hole Diameter.397" (10.08 mm)
