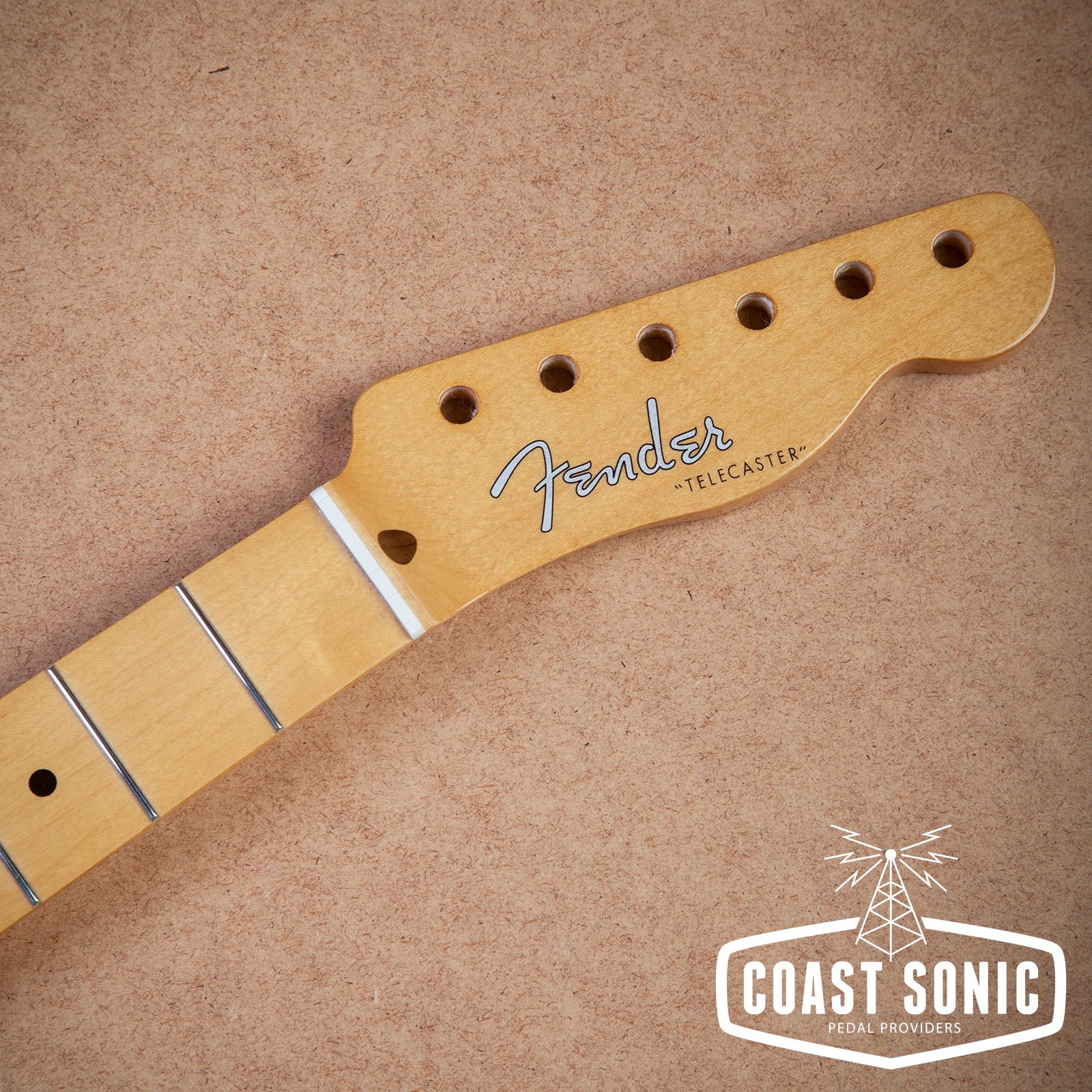

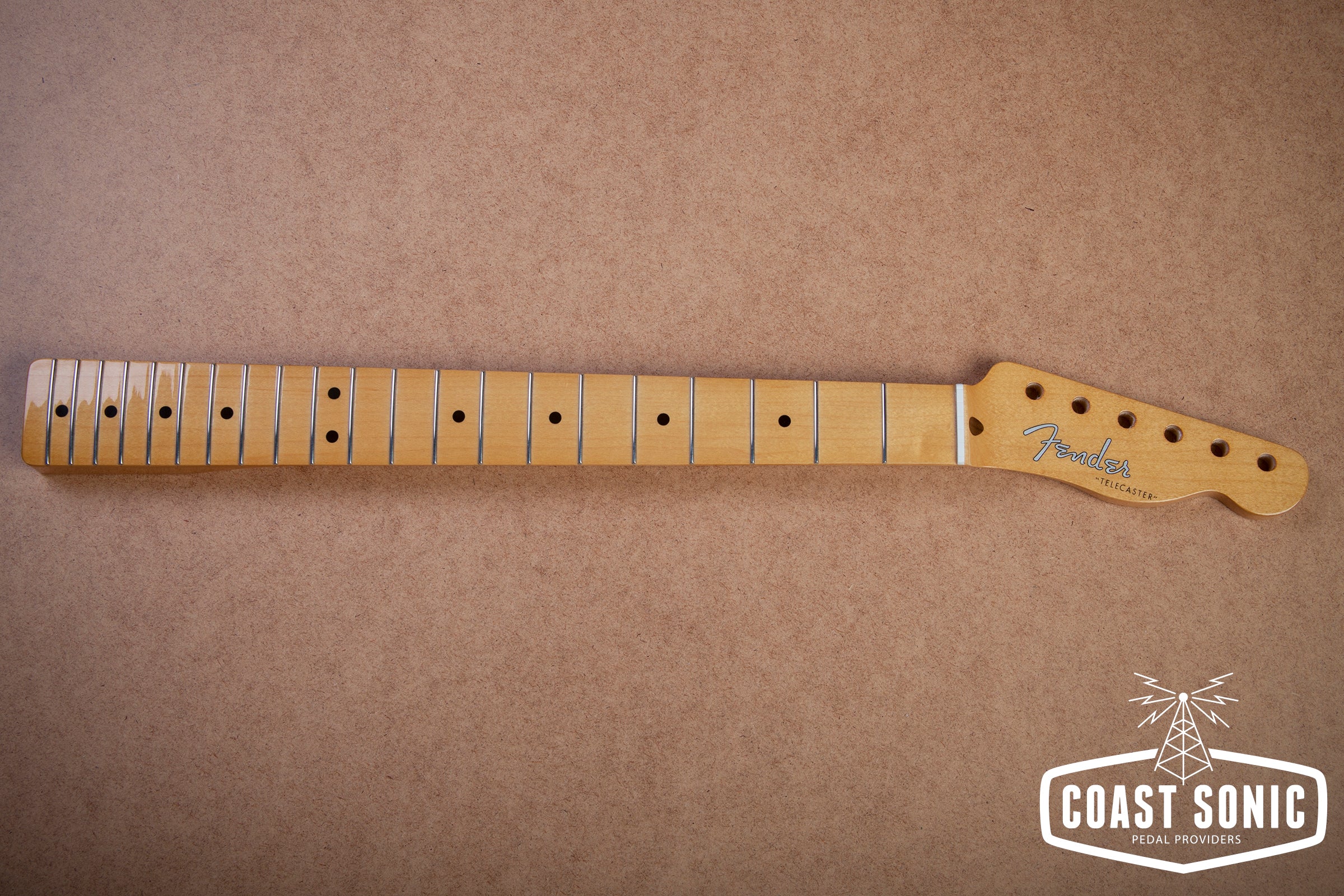

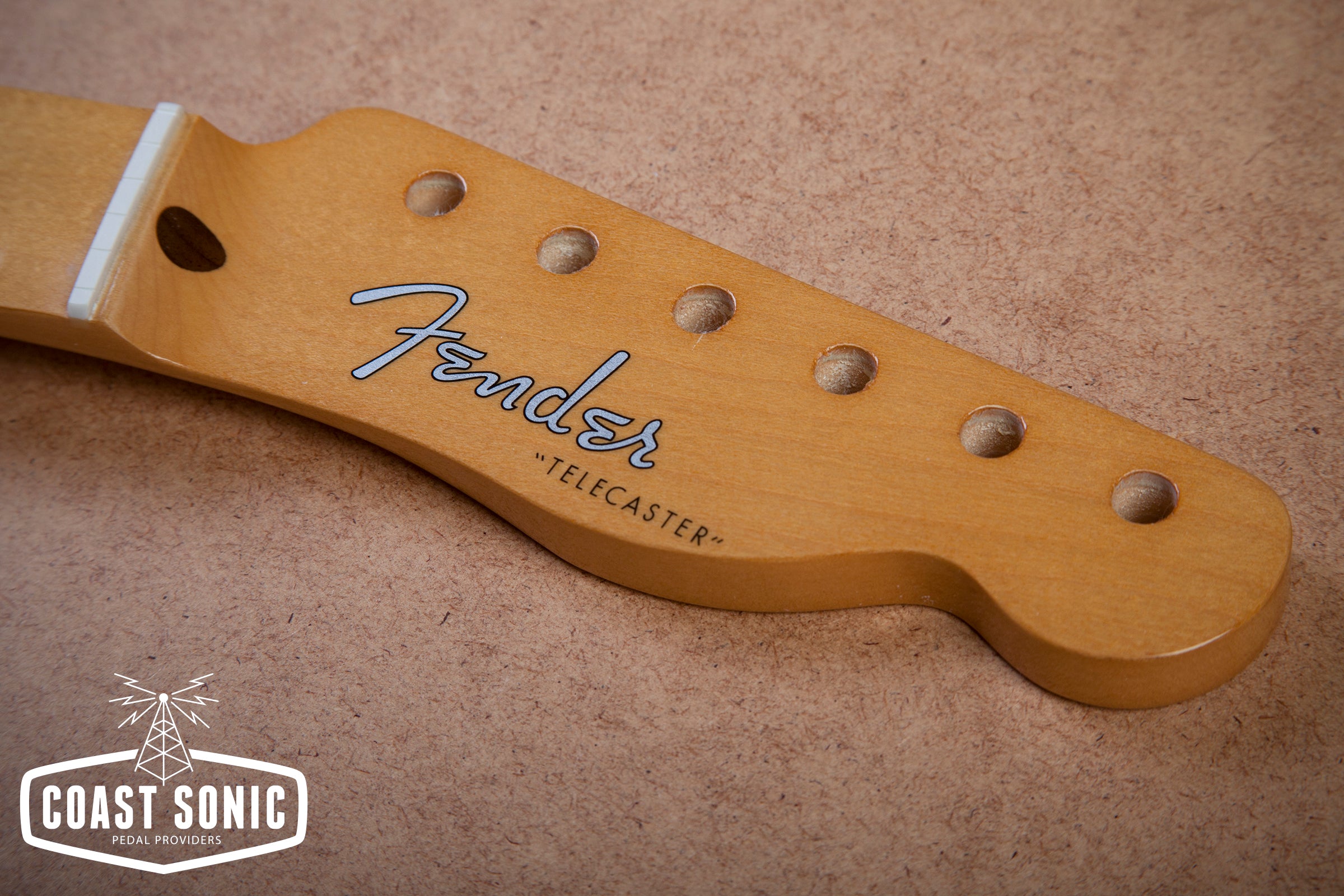

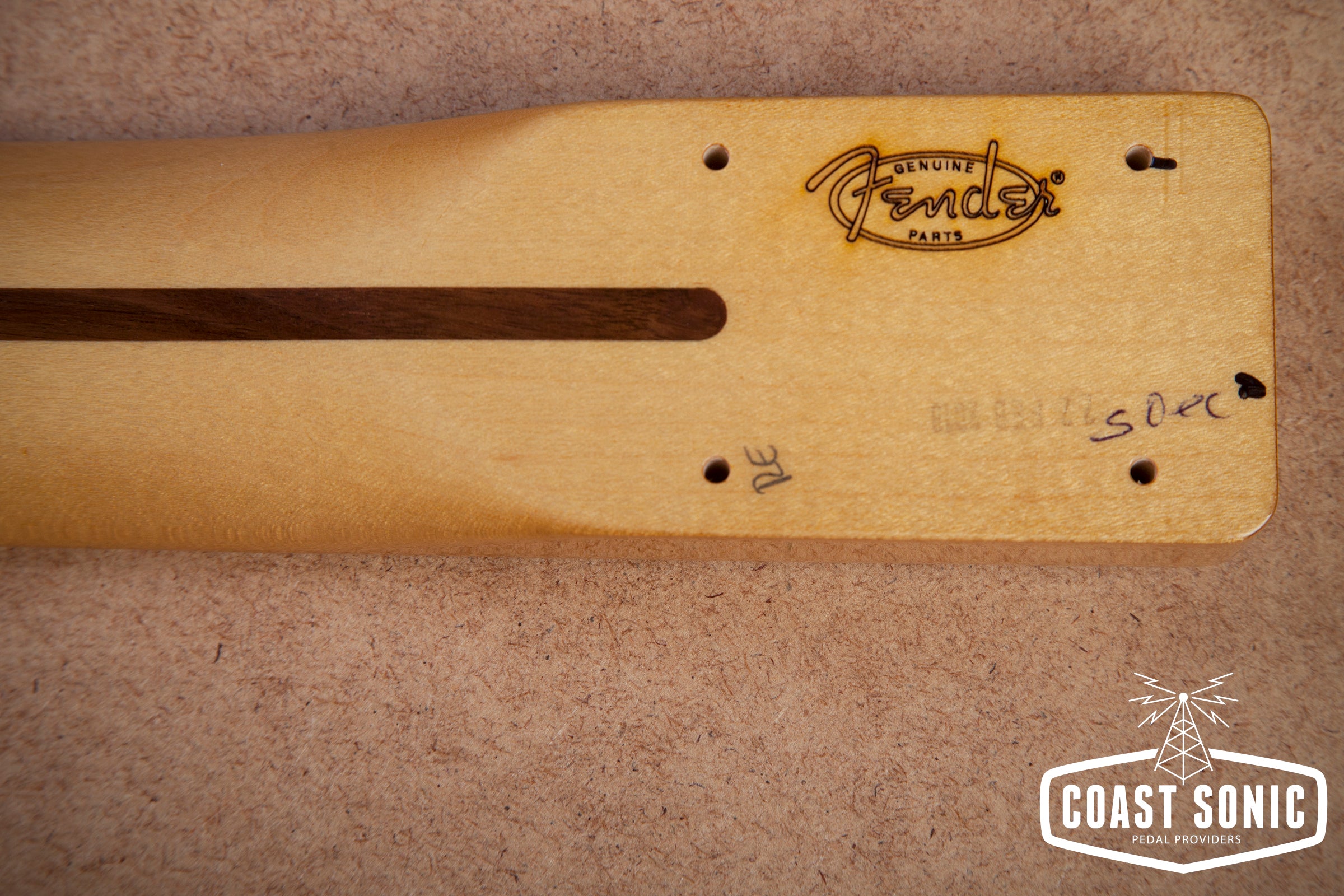

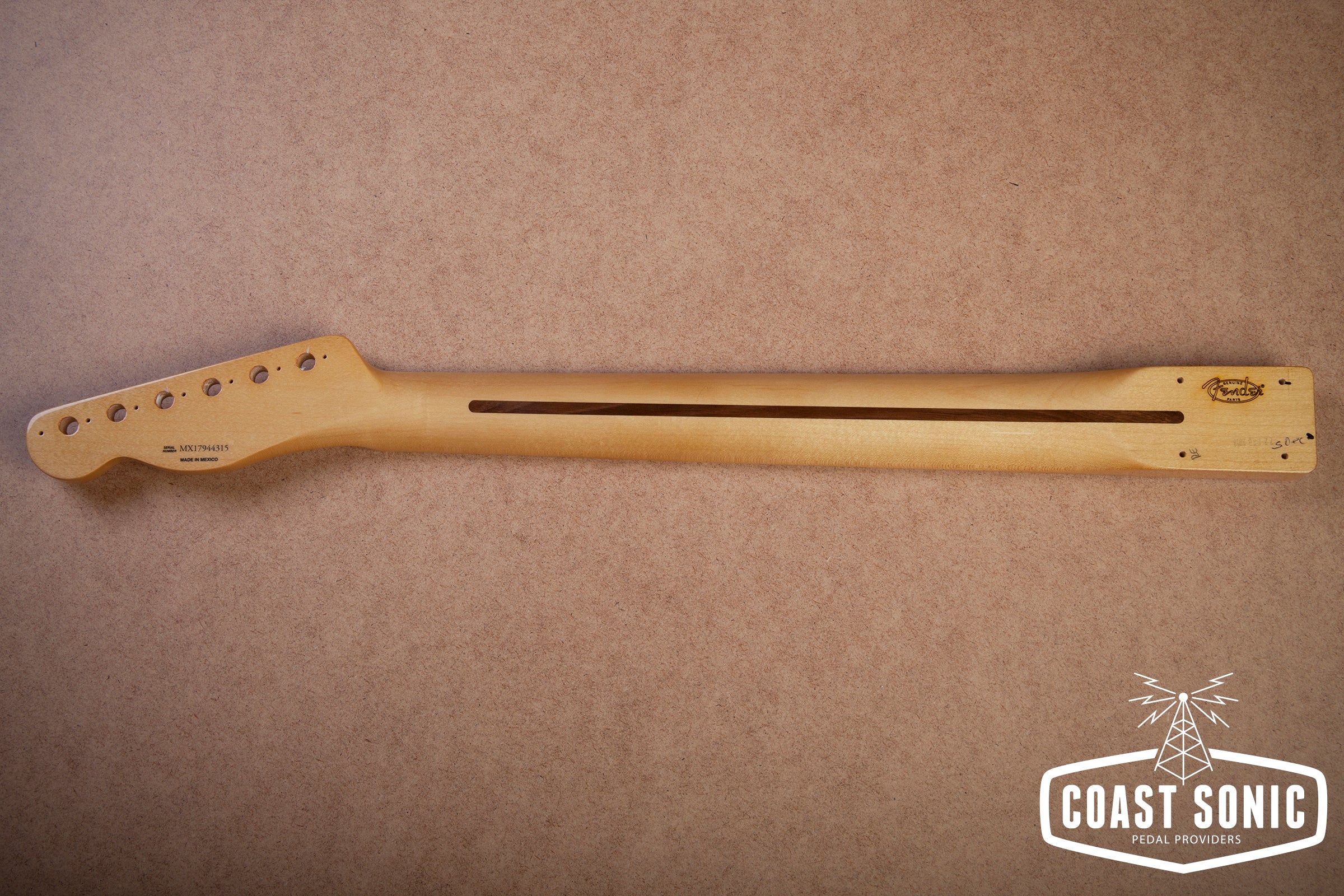

Fender Classic Series 50's Telecaster Neck


Maker: Fender

Model: Classic Series 50's Telecaster Neck

Condition: New



Description:

Coast Sonic is an authorized Fender dealer.

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine vintage-style Fender Telecaster® guitar maple neck features a comfortable vintage "C" profile and 7.25"-radius maple fingerboard with 21 vintage-style frets.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability.

GENERAL
  • Style
    Vintage-Style
  • Neck Shape
    Vintage "C"
  • Tuner Mounting Config
    Vintage-style 2-screw
  • Other Features
    Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
  • Where Used
    Classic Series
MATERIALS
  • Fingerboard Material
    Maple
  • Neck Material
    Maple
  • Nut Material
    Synthetic Bone
  • Position Inlays
    Black Dots
  • Neck Finish
    Gloss Urethane
  • Truss Rod Nut
    Vintage-Style Slotted
  • Truss Rod
    Vintage-Style Butt Adjust
MEASUREMENTS
  • Fingerboard Radius
    7.25" (184.1 mm)
  • Scale Length
    25.5" (648 mm)
  • Nut Width
    1.650" (42 mm)
  • Number of Frets
    21
  • Fret Size
    Vintage Style
  • Headstock Thickness
    .540” (13.71 mm)
  • Neck Thickness
    1st Fret - .820” (20.82 mm), 12th Fret - .900” (22.86 mm)
  • Peg Hole Diameter
    .358” (9.09 mm)






Type: Necks

Vendor: Fender
