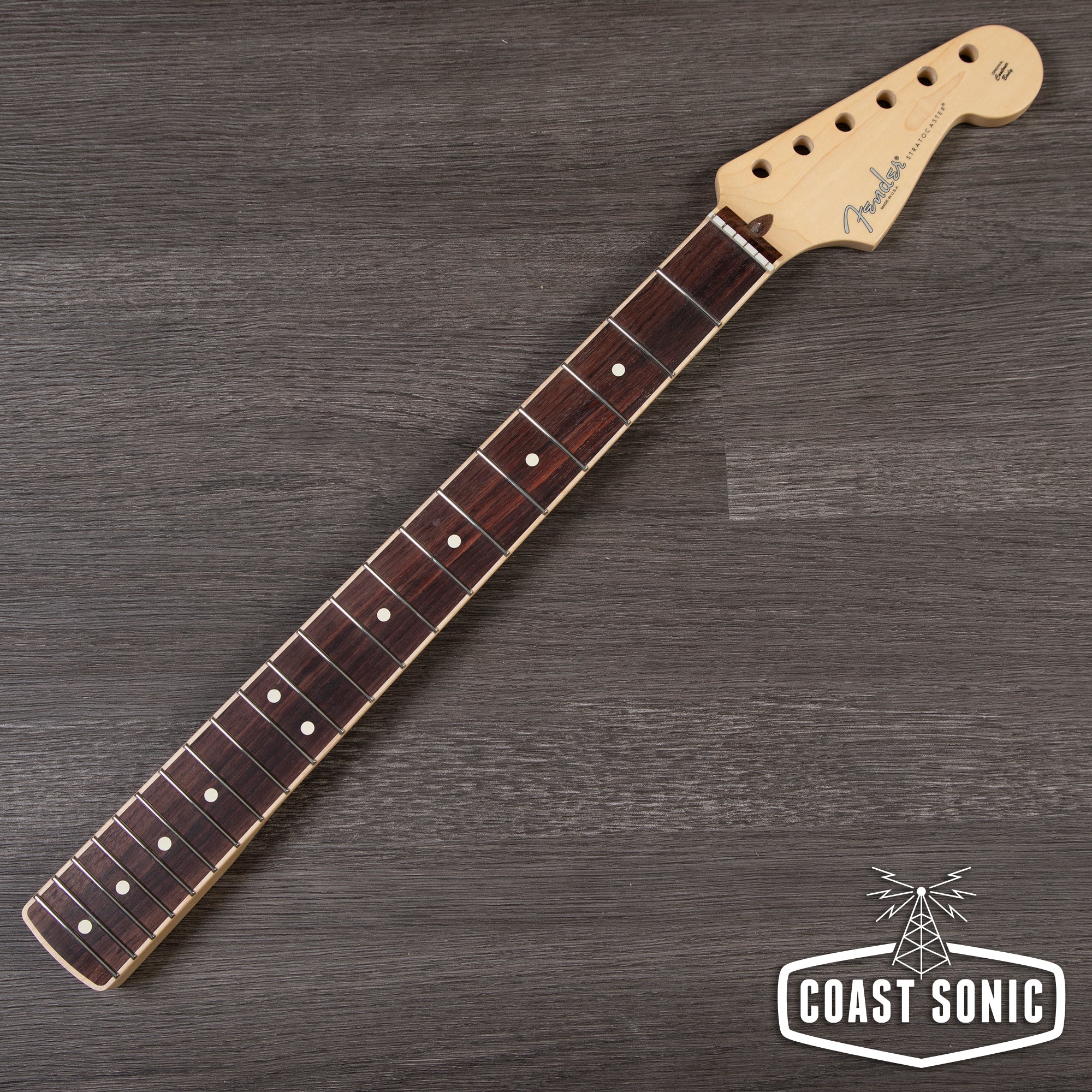

Fender American Channel Bound Strat Neck- Rosewood Fretboard

Name: Fender American Channel Bound Strat Neck- Rosewood Fretboard
Brand: Fender
Price: 619.99 USD
Availability: OutOfStock

Sold Out

Maker: Fender

Model: Channel Bound Stratocaster Neck

Condition: New

Description:

*Note: Stock photo- Grain pattern may vary. Please message us if you would like photos of the neck that would be shipped to you.*

Coast Sonic is an authorized Fender dealer.

ADD A TOUCH OF ELEGANCE

Crafted in the same facility as our U.S.-made instruments, the Channel-Bound Stratocaster® Neck combines a uniquely elegant aesthetic with a distinctively smooth fret-hand feel. The "channel-bound" fingerboard is a unique Fender innovation whereby the fingerboard is directly inlaid into the neck, eliminating the side seams while combining slick style with astounding fret-hand feel. The 9.5"-14" compound-radius rosewood fingerboard is more rounded towards the nut for easy chording, while the flatter radius in the upper register allows wide bends without fretting out. The comfortably rounded fingerboard edges and "Modern C"-shaped profile are ideal for any playing style.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

FEATURES

Maple Stratocaster neck with walnut stripe
Channel-bound 9.5”-14” compound-radius fingerboard
21 medium jumbo frets; vintage ivory inlays
Hand-rubbed polyurethane finish with gloss headstock
Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
FEATURES
- Maple Stratocaster neck with walnut stripe
- Channel-bound 9.5”-14” compound-radius fingerboard
- 21 medium jumbo frets; vintage ivory inlays
- Hand-rubbed polyurethane finish with gloss headstock
- Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
- Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
GENERAL

Neck Shape

Modern "C"

Tuner Mounting Config

Dual Guide Pin

Where Used

American Professional Series

MATERIALS

Fingerboard Material

Rosewood

Neck Material

Maple

Nut Material

Synthetic Bone

Position Inlays

Vintage Ivory Dots

Neck Finish

Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face

Truss Rod Nut

1/8" Hex Adjustment

Truss Rod

Bi-Flex™

MEASUREMENTS

Fingerboard Radius

9.5" to 14" Compound Radius (241 mm-355.6 mm)

Scale Length

25.5" (648 mm)

Nut Width

1.6875" (42.86 mm)

Number of Frets

21

Fret Size

Medium Jumbo

Headstock Thickness

.540" (13.71 mm)

Neck Thickness

1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)

Peg Hole Diameter

.404” (10.26 mm)
