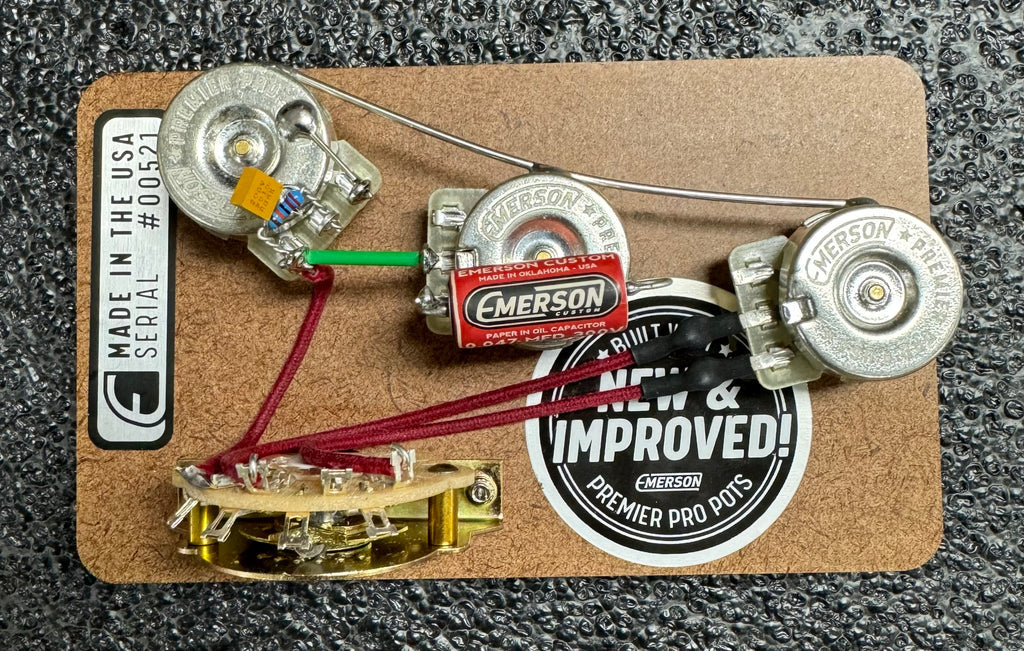

Emerson Custom Blender 5-Way Strat Prewired Kit 500k
Couldn't load pickup availability
Maker: Emerson Custom
Model: Blender 5-Way Strat Prewired Kit 500k
Condition: New
Description:
EMERSON PREMIER PRO POTS
We at Emerson Custom formerly had our own spec’d line of “Emerson PRO CTS pots” but when 2020 rolled around and the supply chain blew up, it was finally time to take matters into our own hands. Faced with lead-times that were 20x longer than that of during a normal time, Mitch was stuck between a rock and a hard place. He didn’t have access to his own supply of his spec of CTS pots because all the major brands were vying for anything and everything they could get from the factories. Mitch was tired of simply accepting the industry norm that CTS pots are “good enough”, or the “best” available. So, he set out to create his very own design and brand of in-house pots that not only look familiar but are built to an incredibly consistent feel and function from lot to lot. It took a ton of money, time and effort, but we feel that these new Emerson PREMIER PRO pots are the best pots available… PERIOD. We weren’t constrained by an off the shelf spec sheet of options to choose from.
We designed and developed these pots from the ground up. The feel and consistency from pot to pot is incredible. We put extra care into the little details to make sure these translate to the end user. We built these to be rugged and reliable. We chose to use robust Fiberglass as the substrate the solder lugs and resistive track are mounted to because its super strong, rigid, and won’t easily bend and snap like those in most every guitar. The taper we used on these is a custom 20% Audio Taper that is a proprietary design from Emerson. This taper works equally as well in the volume position as it does in the tone position. Our Solder lugs are a unique design… slightly oversized for plenty of room to run ground wires/buss wires and any other connection you need to the pot lugs.
Our Blender wiring has 1 volume, 1 master tone, and a Blender pot. In the neck position you can blend the bridge pickup in as much as you want. In the bridge position you can blend the neck pickup in as much as you want. In positions 2 and 4 you can have all three pickups on at once. The nicest part about it is the fact of it being so user friendly. Everything else seems to be hard to use on the fly.
Specifications
- 1: Emerson PREMIER PRO Volume Pot (Master Volume) [3/8" Split Shaft]
- 1: Emerson PREMIER PRO Tone Pot (Master Tone) [3/8" Split Shaft]
- 1: Emerson PREMIER PRO 250K Blender Pot [3/8" Split Shaft]
- 1: 0.047uf Emerson Paper in Oil Capacitor *(0.022uf are used with 500K-Ohm Pots Option)*
- 1: Volume Mod (Treble Bleed; Retains Clarity when rolling back volume knob)
- 1: Prewired Jack
- 1: Wiring Diagram
Control Layout
- Master Volume
- Master Tone
- Blender Pot
SWITCH & BLENDER POT FUNCTION
Blender Pot on 10:
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck
Blender Pot on 1:
Position 1: Bridge w/ Neck Pickup Blended in
Position 2: Bridge & Middle w/ Neck Pickup Blended in
Position 3: Middle
Position 4: Middle & Neck w/ Bridge pickup Blended in
Position 5: Neck w/ Bridge Pickup Blended in
Installation Tips for Knobs on Split Shaft Pots
US Spec Emerson PREMIER PRO split shaft pots are made to fit USA Spec 24 spline push-on knobs. Some USA & Import Guitars will need new USA Spec Knobs as even some US makers use import spec parts which will not work with our pots. We recommend that you don't rush the knob install process. If your knob is too tight and is not going on ,slightly crimp together the top of the potentiometers shaft ever so slightly so that when you go to push on the knob you don't damage the pot shaft by exerting too much downward pressure. If you have any questions regarding install please let us know. Thank you.
