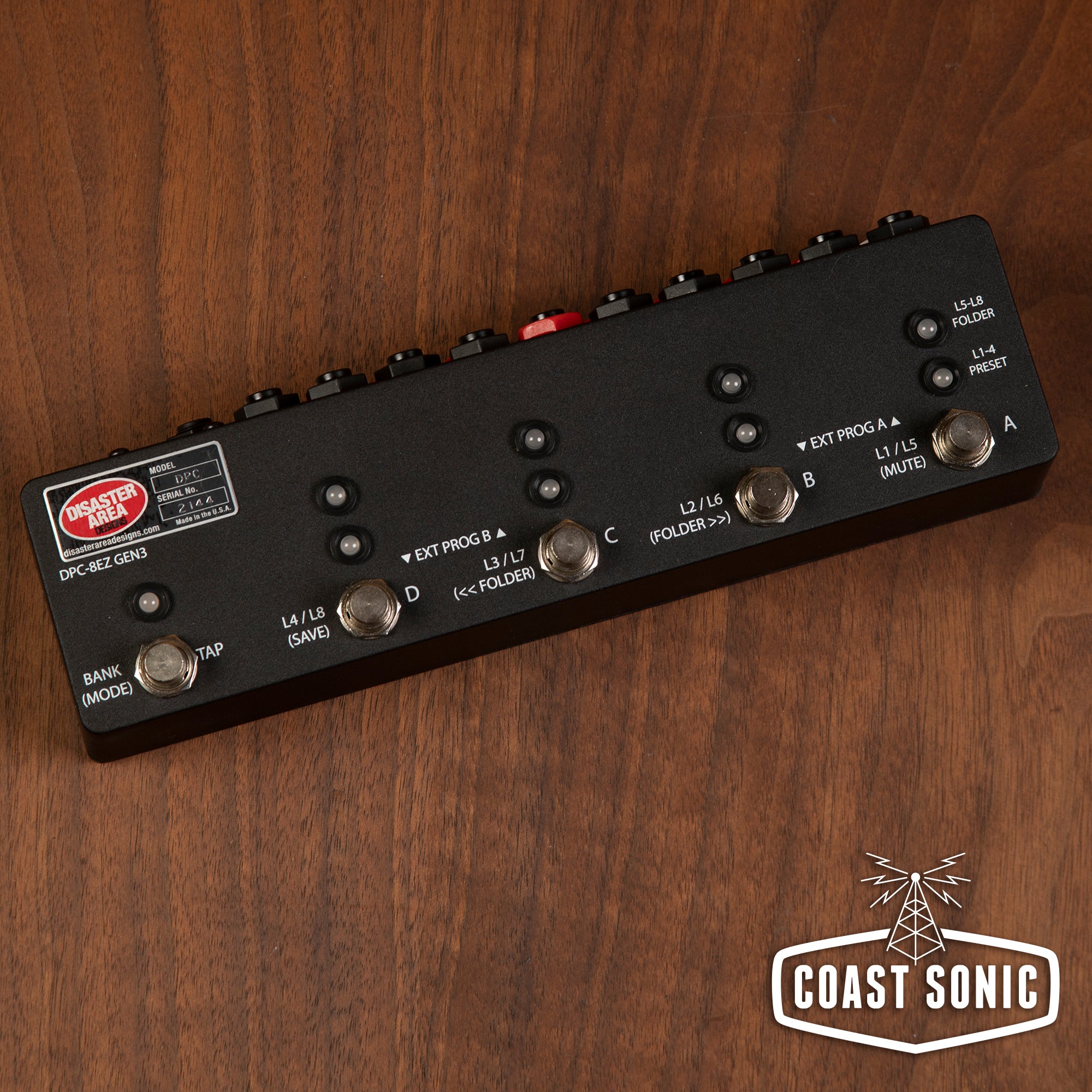

Disaster Area DPC-8EZ Gen3 Programmable Bypass Switcher with MIDI

Maker: Disaster Area

Model: DPC-8EZ Gen3 Programmable Bypass Switcher with MIDI

Condition: New



Description:

The DPC-8EZ Gen3 is our updated compact pedalboard control system with eight effects loops and MIDI.

A bypass looper can streamline your rig in ways you never thought possible – imagine being able to tap one footswitch to go from verse to chorus to bridge of a song, while changing up to eight different effects plus two MIDI devices!

If you already have a MIDI controller, the DPC-8EZ can act as a MIDI “slave” on any available channel.  You can even connect two or more DPC-8EZ to control more pedals.

The DPC-8EZ is fully compatible with the Disaster Area Gen3 pedal controllers – connect it to add eight effects loops under MIDI control.  The DPC-8EZ can also function as a standalone MIDI controller for up to two devices.

What’s new in Gen3?

The switching system at the heart of the DPC-8EZ is so robust and transparent that we didn’t dare to change it!  We did add a few nice new features, though!

  • Faster, more powerful 32-bit processor
  • Improved USB MIDI capabilities
  • User-definable LED brightness (10 levels)
  • New MIDI mode controls up to two MIDI devices with program select and tap tempo
  • Preset mode now controls MIDI and loops
  • Tuner output jack doubles as a MultiJack
  • MultiJack functions as MIDI input & output OR double MIDI output
  • MultiJack is directly compatible with Chase Bliss, Empress, or Meris pedals



Standard Features:

  • Compact size – 10″ x 2.6″ x 2″ excluding switch caps and jacks.
  • No special power supply required – uses less than 120mA, 9V from a Pedal Power 2 or similar.
  • 5 footswitches for preset selection or manual effects loop control.
  • 48 presets accessible by foot, arranged in four folders with three banks of four presets each.
  • 128 presets accessible using an external MIDI controller
  • Full MIDI control of presets and effects loops
  • 8 effects loops with a custom-designed switching matrix
  • MIDI mode controls up to two MIDI devices
  • Dedicated insert connection may be assigned to any position in the effects loop section.
  • Always-on tuner out with tuner mute, doubles as second MIDI interface
  • Status LEDs with user-definable brightness work in any situation from an orchestra pit to full sun.
  • Exclusive Z-MODE buffer allows you to tailor the impedance to work with fuzz, vibe, wah, and other impedance-sensitive pedals
  • USB connector for MIDI connection and future firmware upgrades (PC and Mac firmware update tools available.)




          Type: Utility

          Vendor: Disaster Area
