Fender Player Series Stratocaster Neck Maple

$299.99 USD
By Fender

Maker: Fender

Model: Player Series Stratocaster Neck

Condition: Brand New



Description:

*Note: Stock photo- Grain pattern may vary. Please message us if you would like photos of the neck that would be shipped to you.*

Coast Sonic is an authorized Fender dealer.

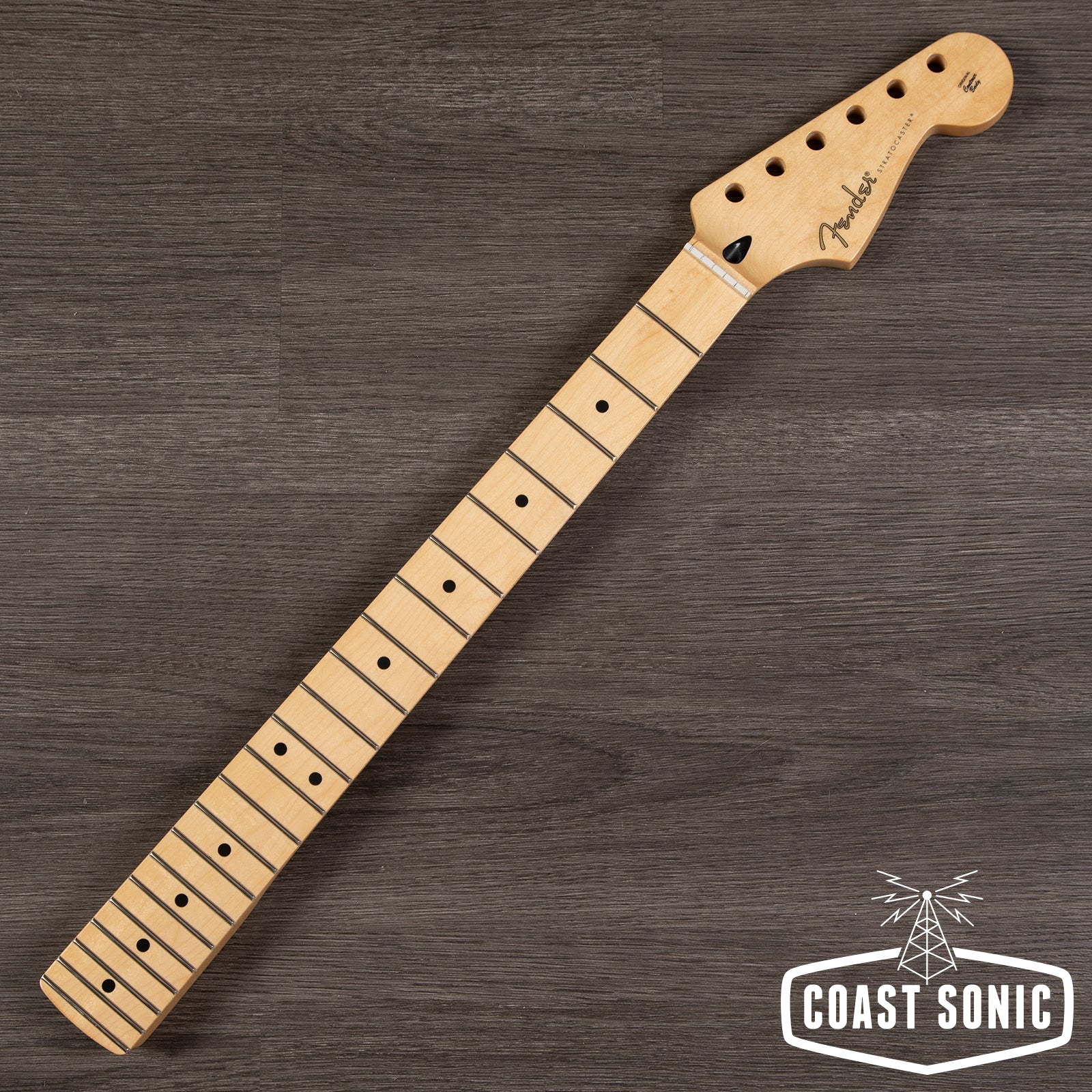

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Series Stratocaster® guitar neck features a comfortable "modern C" profile and 9.5"-radius maple or pau ferro fingerboard with 22 medium jumbo frets.

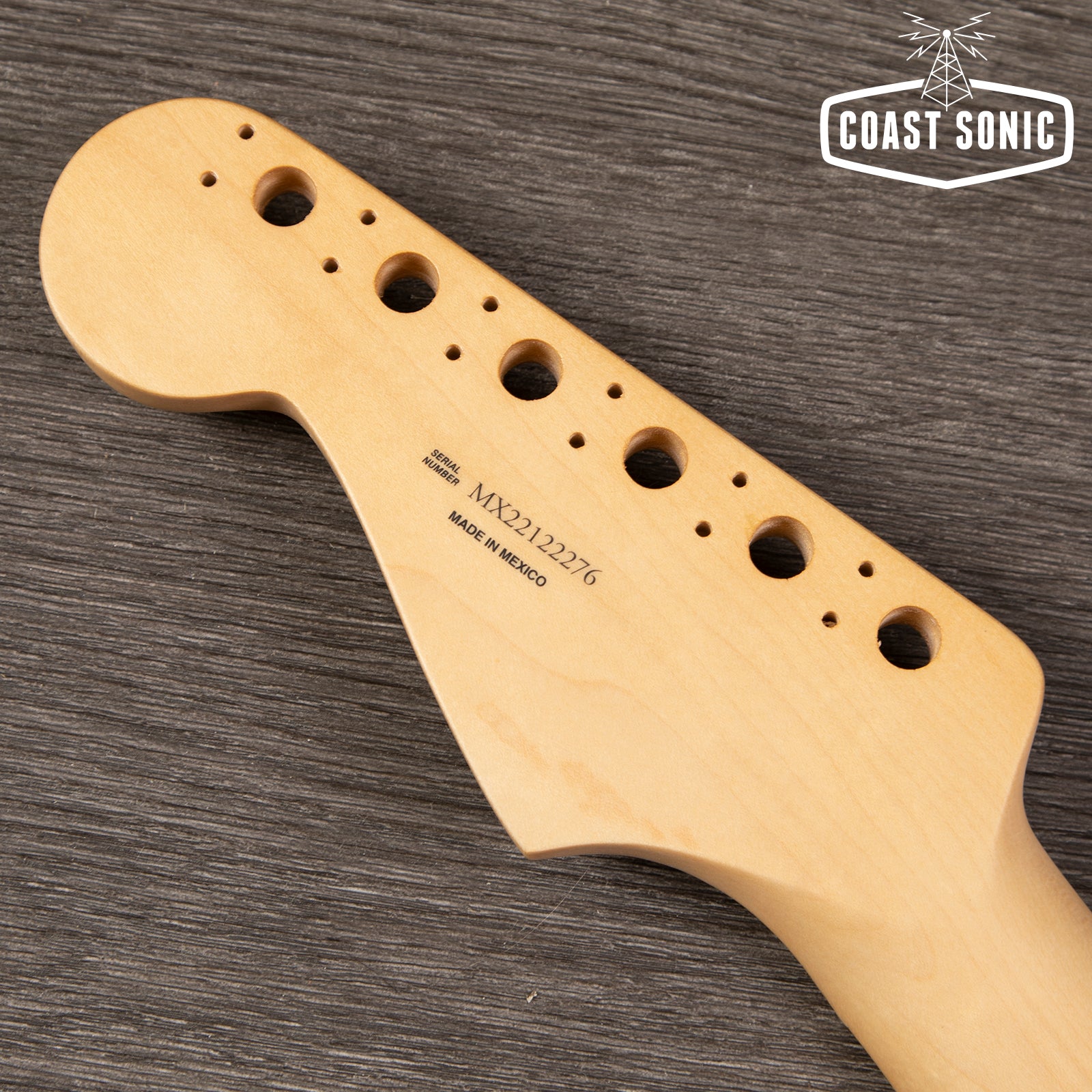

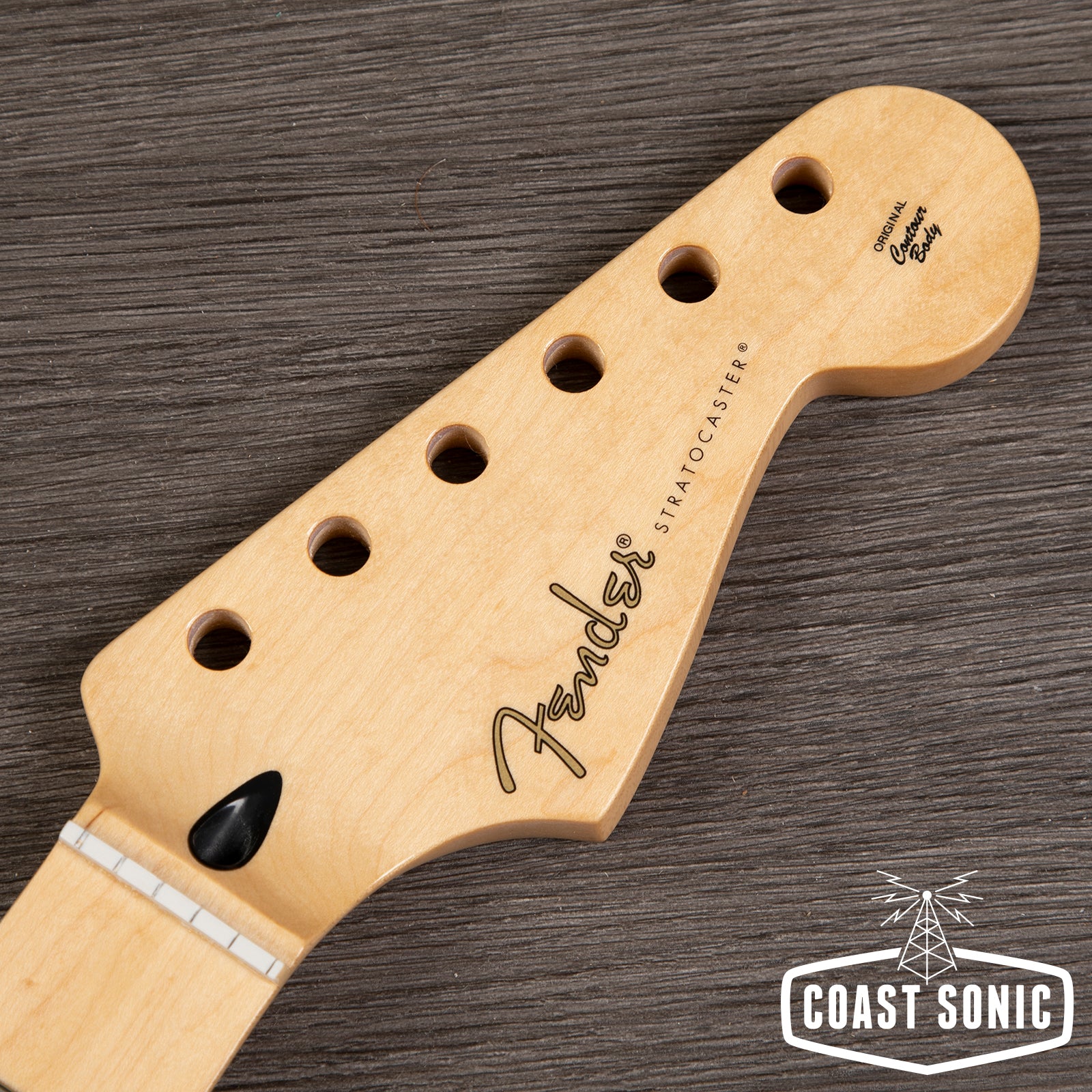

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

FEATURES

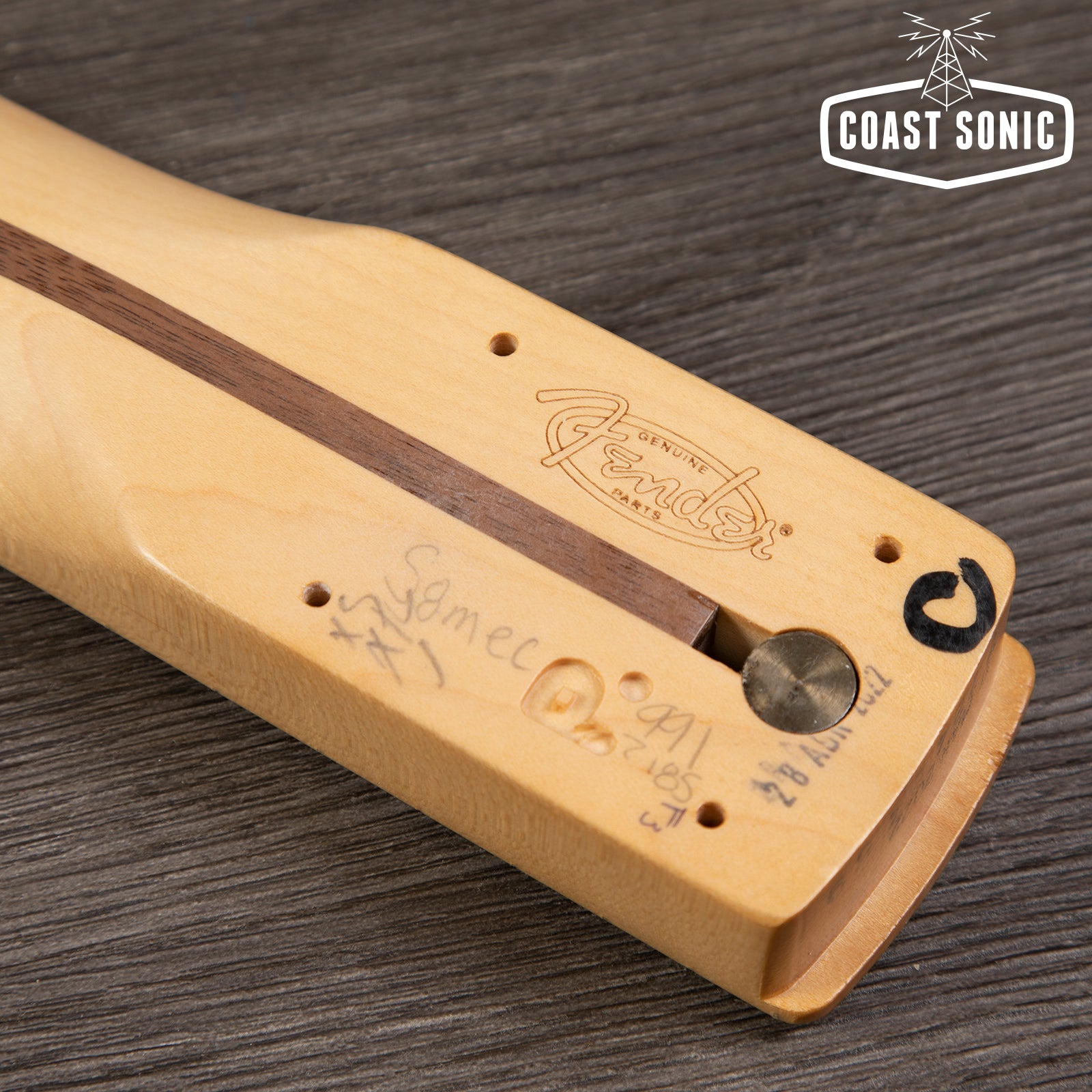

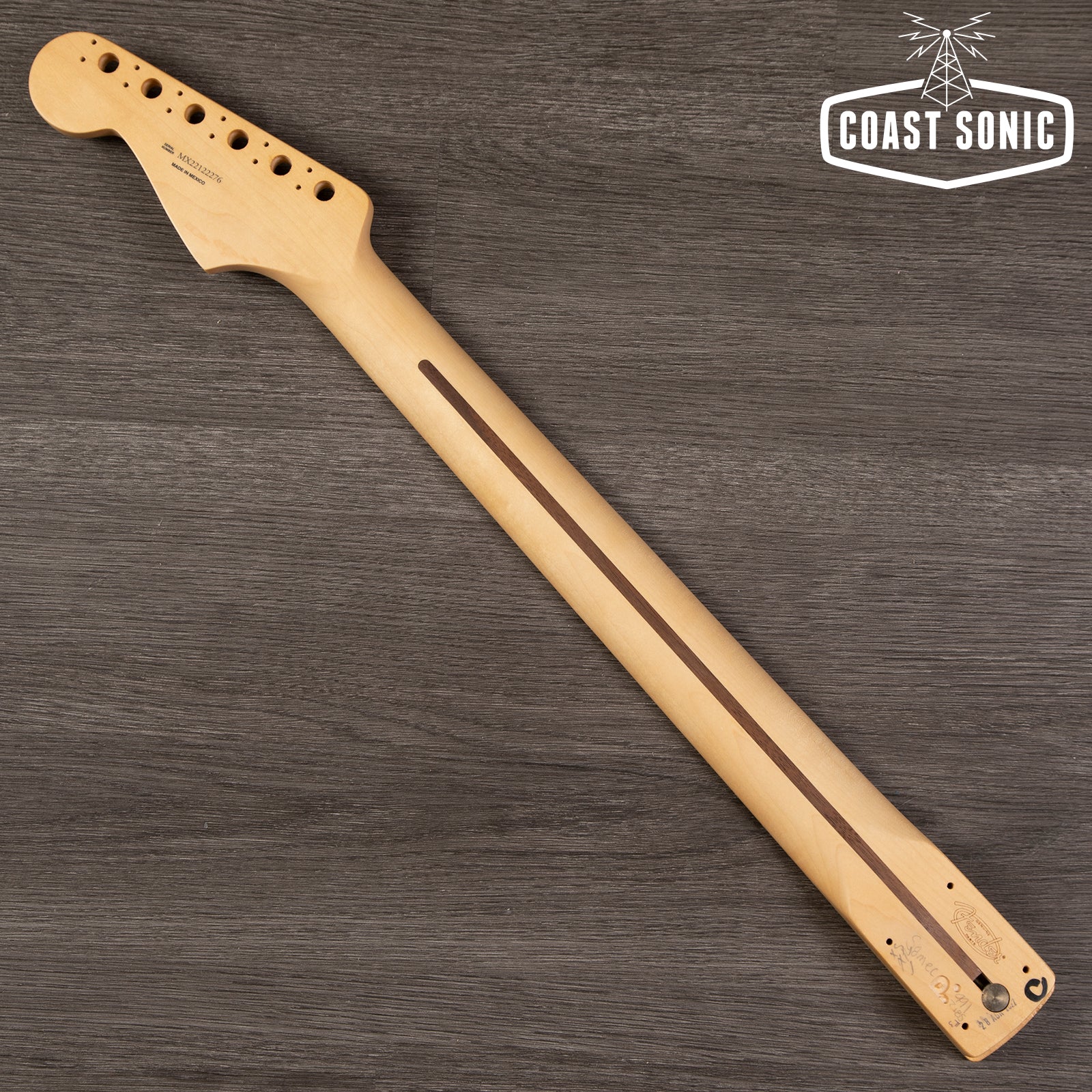

  • Maple neck with walnut "skunk" stripe
  • Maple or pau ferro fingerboard with 9.5" radius
  • 22 medium jumbo frets
  • Pre-slotted synthetic bone nut
  • Standard truss rod
  • Six two-guide-pin tuning machine holes
GENERAL
  • Neck Shape
    Modern "C"
  • Tuner Mounting Config
    Dual Guide Pin

MATERIALS
  • Fingerboard Material
    Maple
  • Neck Material
    Maple
  • Nut Material
    Synthetic Bone
  • Position Inlays
    Black Dot
  • Neck Finish
    Satin Urethane Finish on Back, Gloss Urethane Finish on Front
  • Truss Rod Nut
    3/16" Hex Adjustment
  • Truss Rod
    Standard

MEASUREMENTS
  • Fingerboard Radius
    9.5" (241 mm)
  • Scale Length
    25.5" (64.77 cm)
  • Nut Width
    1.650" (42 mm)
  • Number of Frets
    22
  • Fret Size
    Medium Jumbo
  • Headstock Thickness
    .540” (13.71 mm)
  • Neck Thickness
    1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
  • Peg Hole Diameter
    .397" (10.08 mm)
