The story of Fender's modular design began in 1946, and guitarists have been writing their own chapters ever since. Our pioneering bolt-on neck construction wasn't just about making guitars easier to service—it was about giving players the power to shape their sound. Today, every genuine Fender replacement neck carries that legacy forward, offering endless possibilities for customization, restoration, and reinvention.

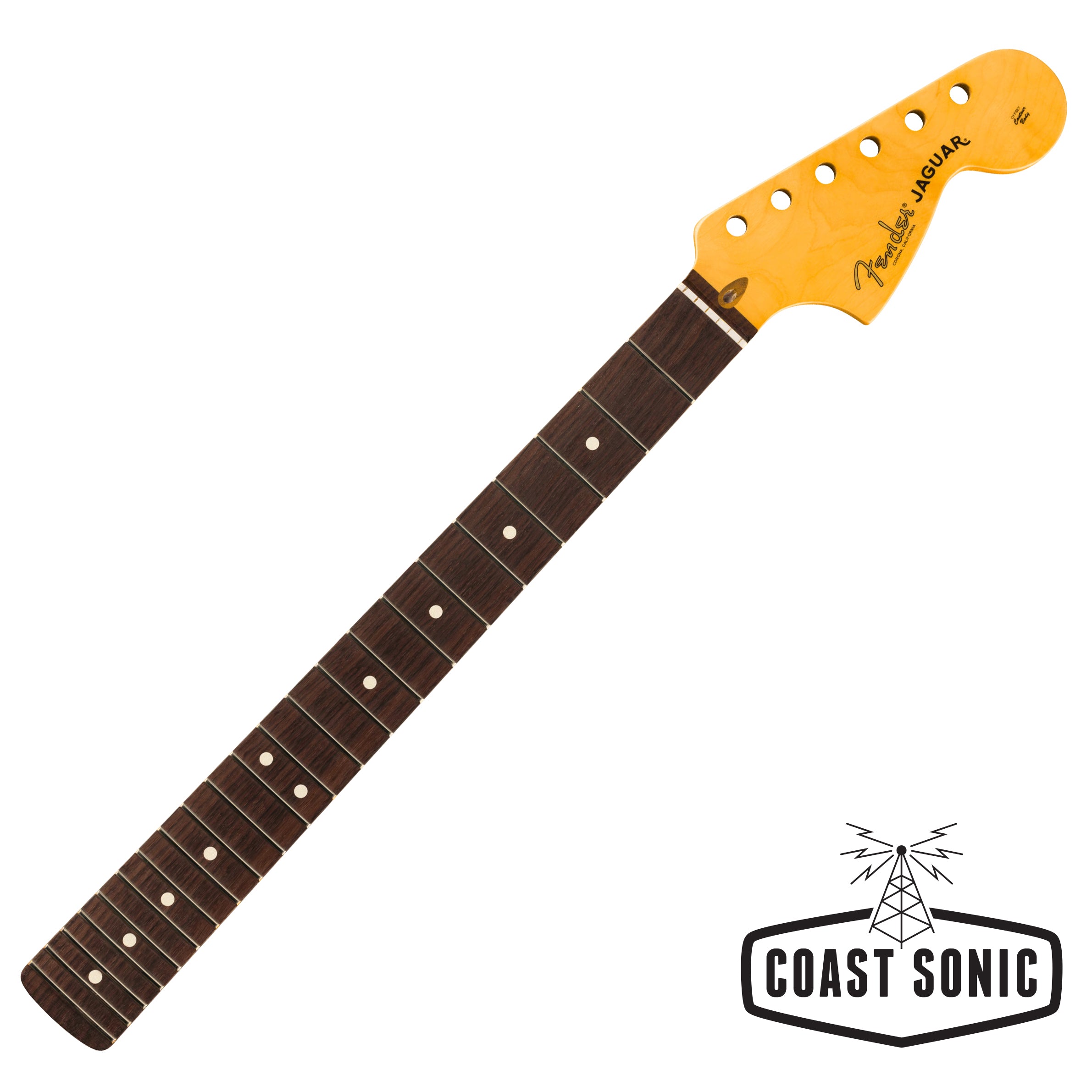

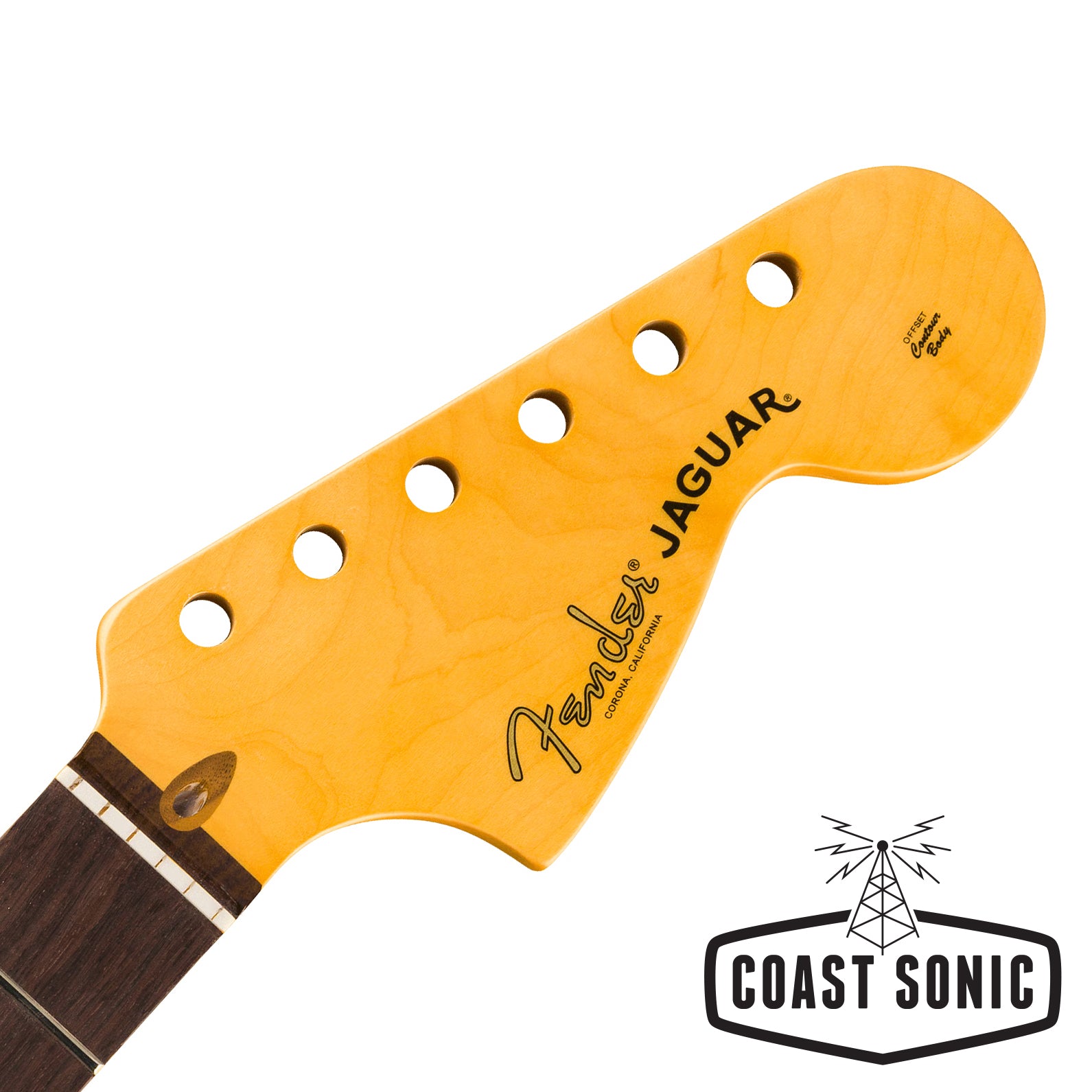

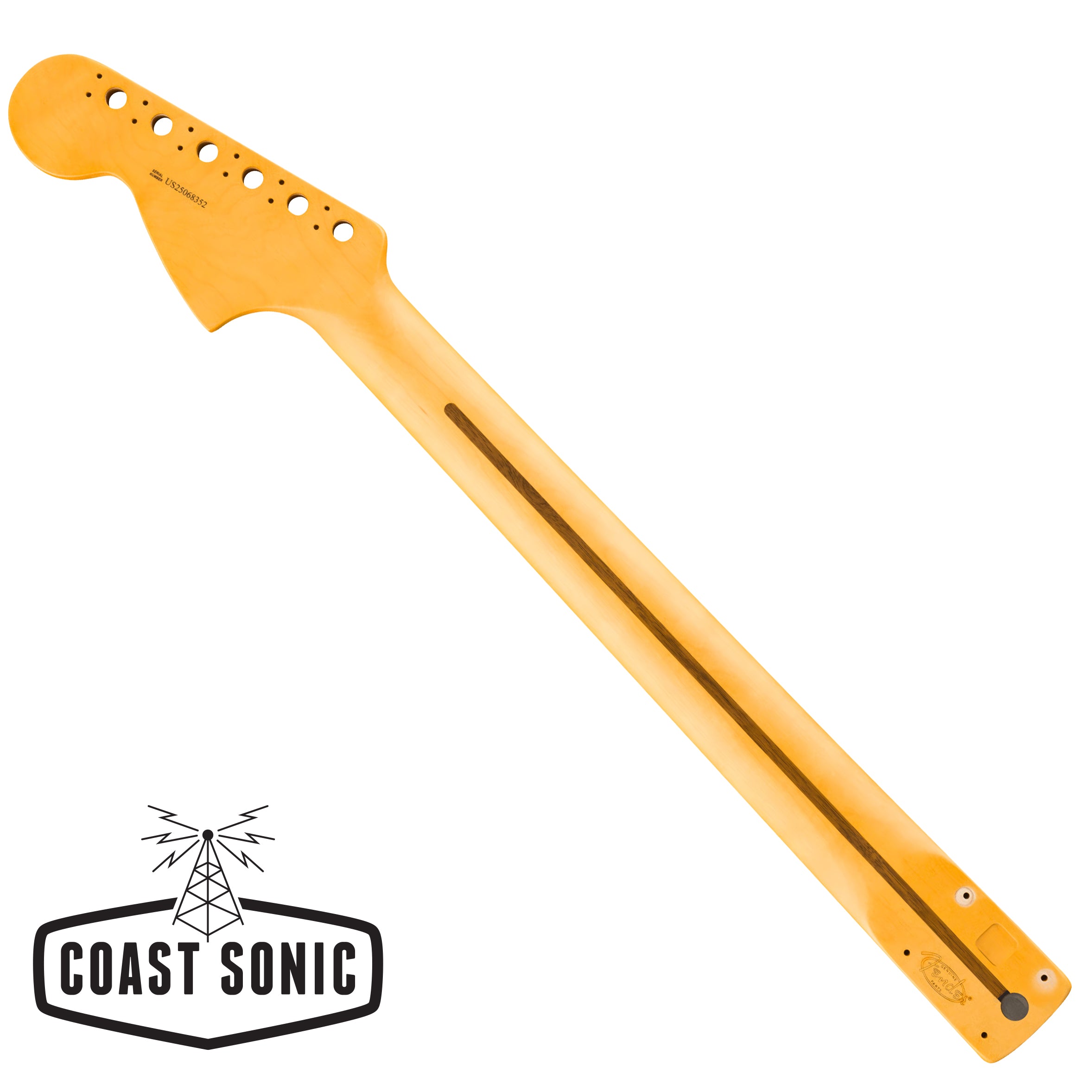

Crafted in the same facility as our U.S.-made instruments, the American Professional Classic Jaguar® neck works well with almost any playing style. Features include our comfortable "Modern C" neck profile with a satin urethane finish that give it a smooth, fast playing feel. The 9.5”-radius fingerboard with medium jumbo frets provides fast fretting and easy playability, while the hand-rolled fingerboard edges provide a slightly broken-in feel.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and laser engraved with our “Genuine Fender Parts” logo on the heel.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
Features
- The Fender American Professional Classic Jaguar® guitar neck delivers a comfortable playing experience with its smooth, ergonomic profile
- Ideal for almost any playing style, the Modern C is not as deep as most U- and V-shaped neck profiles and hand-rolled edges offers a naturally comfortable, played-in feel
- A 9.5"-radius rosewood fingerboard and 22 medium jumbo frets facilitate fluid leads and choke free bends
- The silky-smooth satin urethane back finish provides faster movement up and down the neck
- Made of melamine, this 1.685" width synthetic bone nut offers great resonance and sustain and is pre-slotted to ensure proper string spacing
Specs
-
General
Color
Natural
Orientation
Right-Hand
Product Name
American Professional Classic Jaguar® Neck, 22 Medium Jumbo Frets, 9.5" Radius, Rosewood
Series
American Professional Classic
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
24" (610 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
1/8" Hex Adjustment
