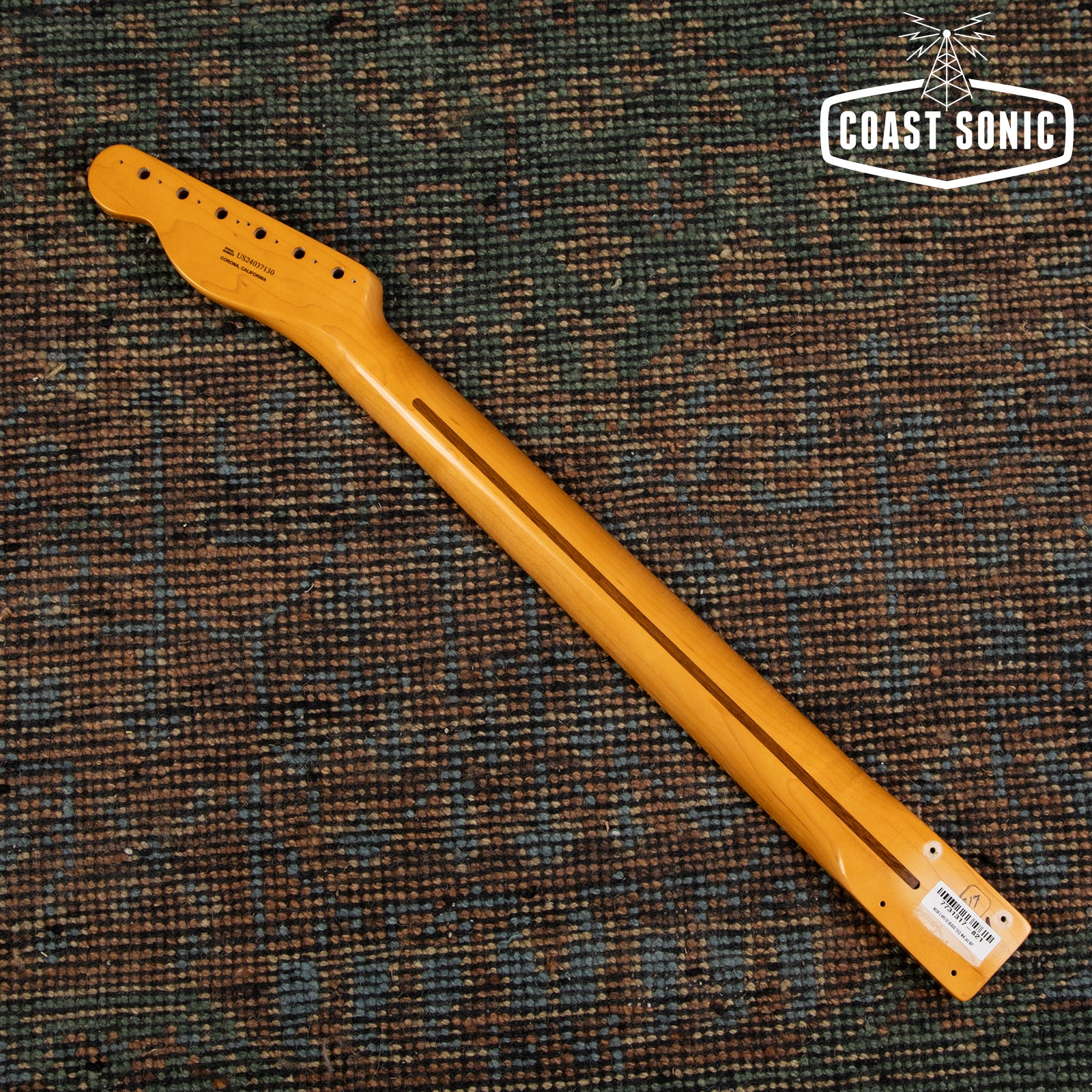

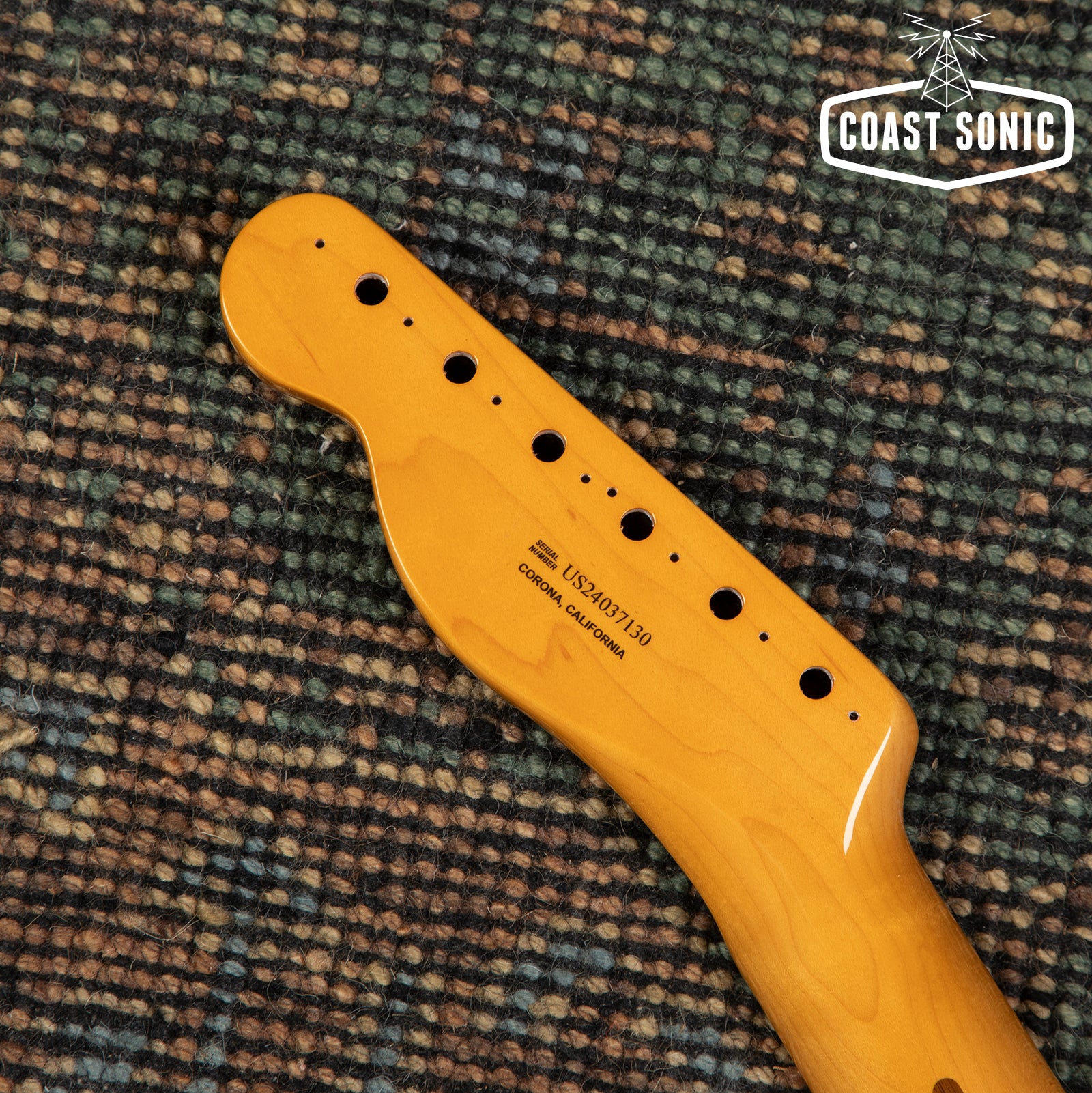

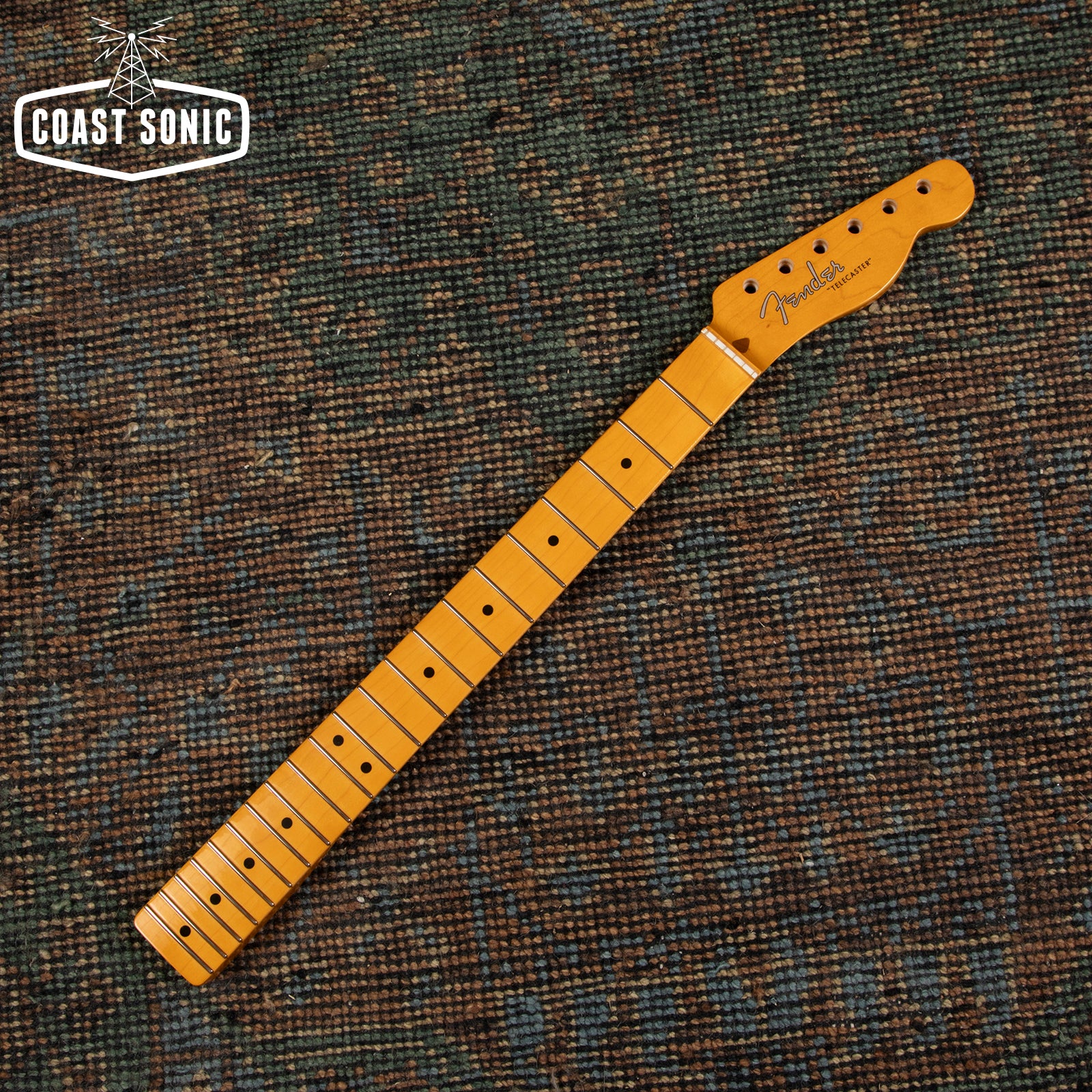

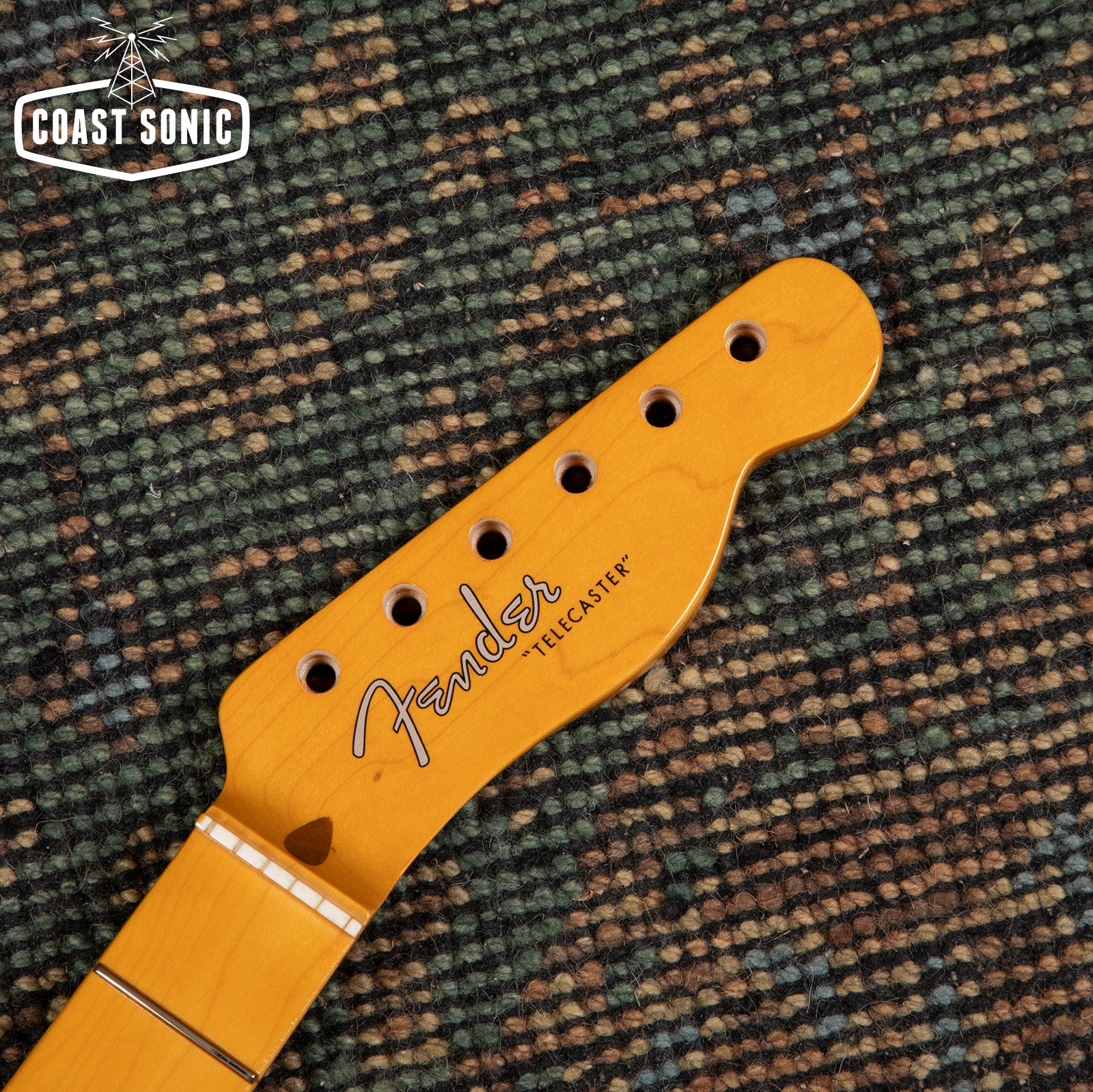

Fender American Vintage II 1951 Telecaster Neck - Maple

$799.99 USD
By Fender

Maker: Fender

Model: American Vintage II 1951 Telecaster Neck

Condition: Brand New



Description:

In vintage years, the shape and thickness of Fender guitar necks varied tremendously. The American Vintage II Series features authentic neck profiles from Fender's past. Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Vintage II 1951 Telecaster 1-piece maple neck features a substantial "U"-shaped profile and 7.25"-radius fingerboard with 21 vintage-tall frets.

The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a lacquer finish offers a vintage feel. This replacement neck is the perfect way to give your Tele® an authentically '50s feel.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

Features

  • Maple fingerboard with 7.25" radius
  • 1951 "U" neck profile
  • 21 vintage-tall frets
  • Bone nut
  • Gloss nitrocellulose lacquer finish
  • Vintage-style truss rod adjustment

Specs



            General
    • Style
      Vintage
    • Neck Shape
      1951 "U"
    • Tuner Mounting Config
      Vintage-Style 2-Screw
    Materials
    • Fingerboard Material
      Maple
    • Neck Material
      Maple with Walnut Stripe
    • Nut Material
      Bone
    • Position Inlays
      Black Dot
    • Neck Finish
      Gloss Nitrocellulose Lacquer
    • Truss Rod Nut
      Vintage-Style Slotted
    • Truss Rod
      Vintage-Style Butt Adjust
    Measurements
    • Fingerboard Radius
      7.25" (184.1 mm)
    • Scale Length
      25.5" (64.77 cm)
    • Nut Width
      1.650" (42 mm)
    • Number of Frets
      21
    • Fret Size
      Vintage Tall
    • Headstock Thickness
      .540" (13.71 mm)
    • Neck Thickness
      1st Fret - .890” (22.60 mm), 12th Fret - .990” (25.15 mm)
    • Peg Hole Diameter
      .358" (9.09 mm)
      •
