Fender Deluxe Series Telecaster Neck 12" Radius, 22 fret


Maker: Fender

Model: Deluxe Series Telecaster Neck

Condition: New



Description:

Coast Sonic is an authorized Fender dealer.

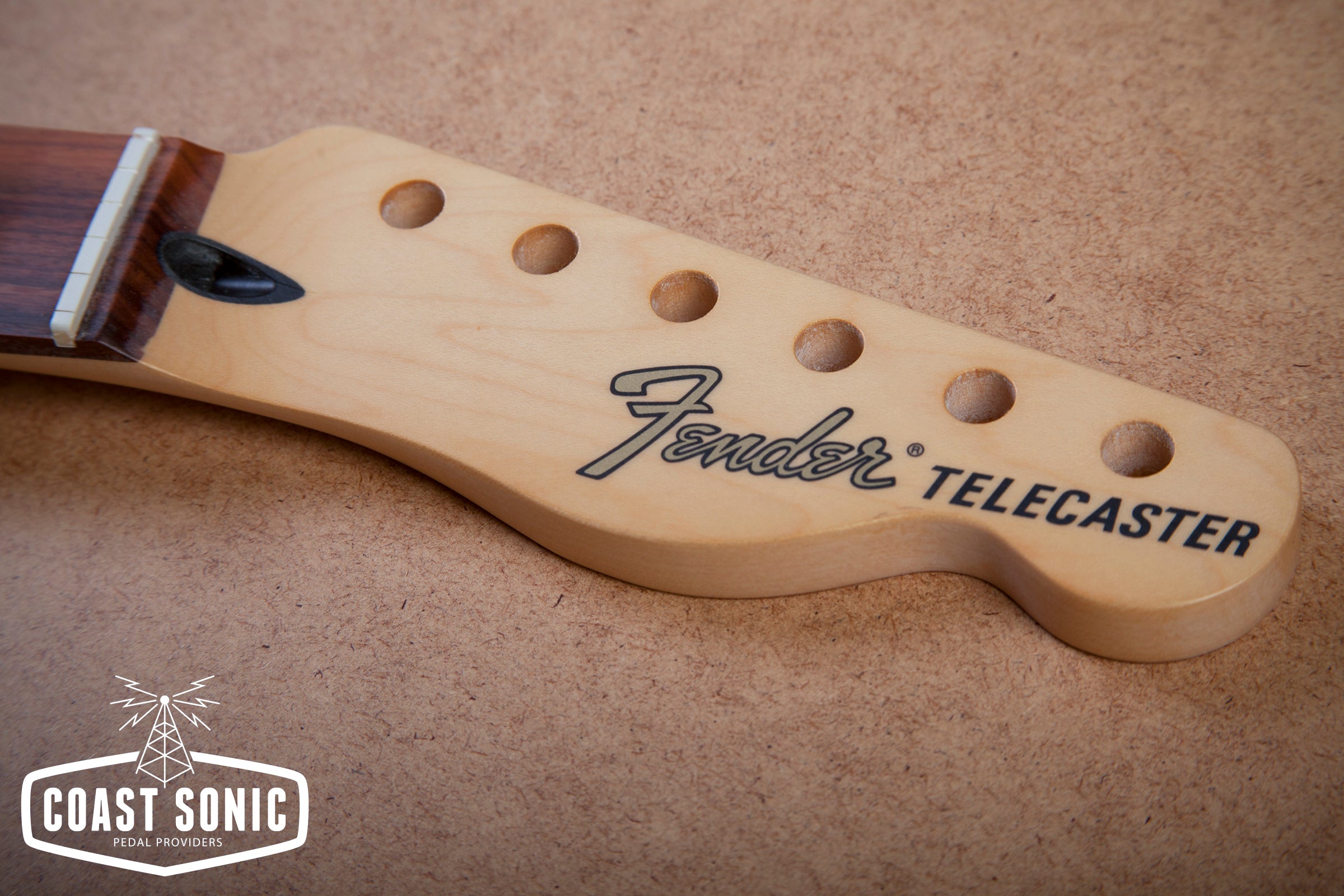

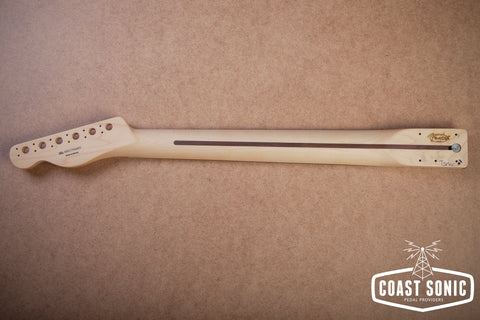

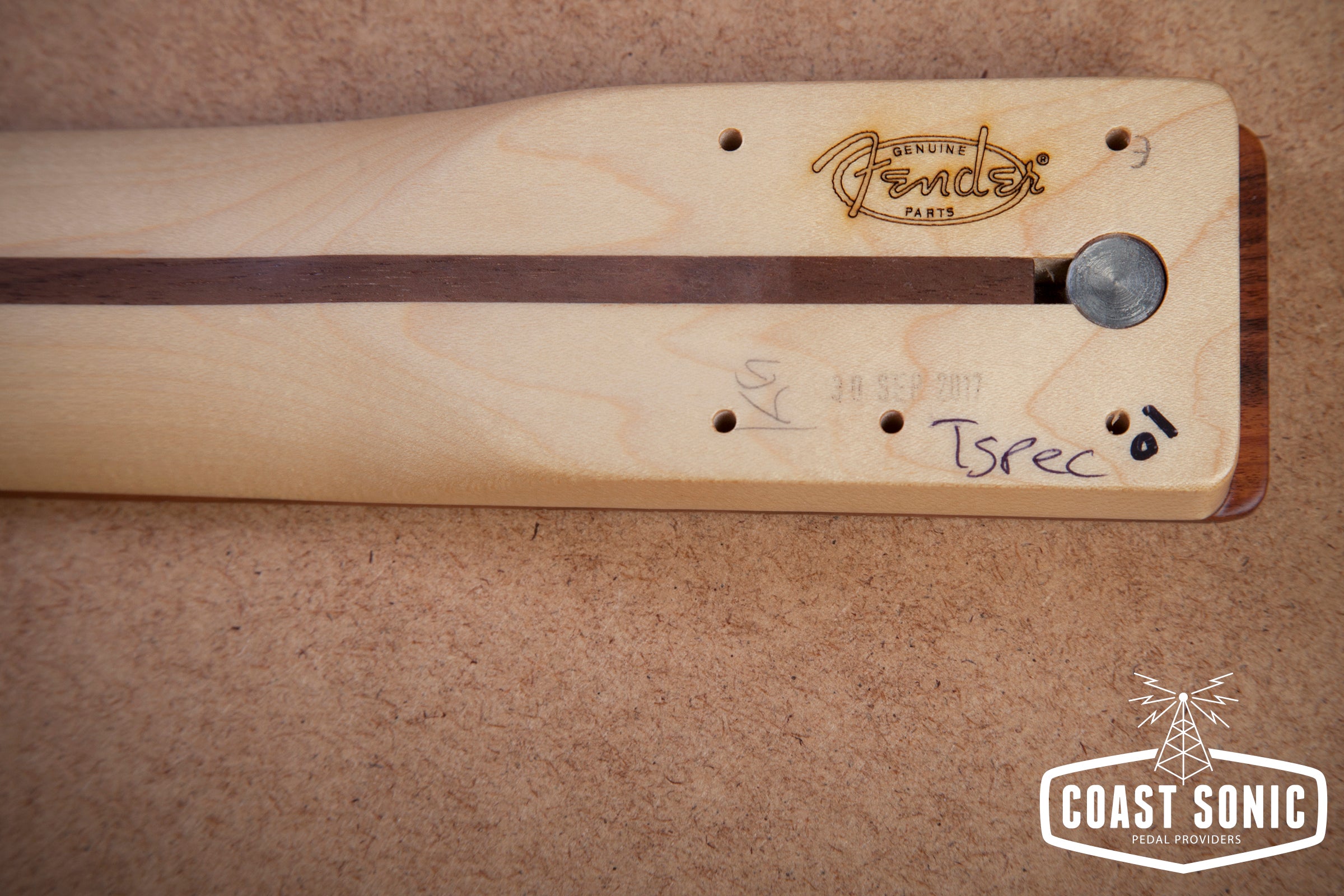

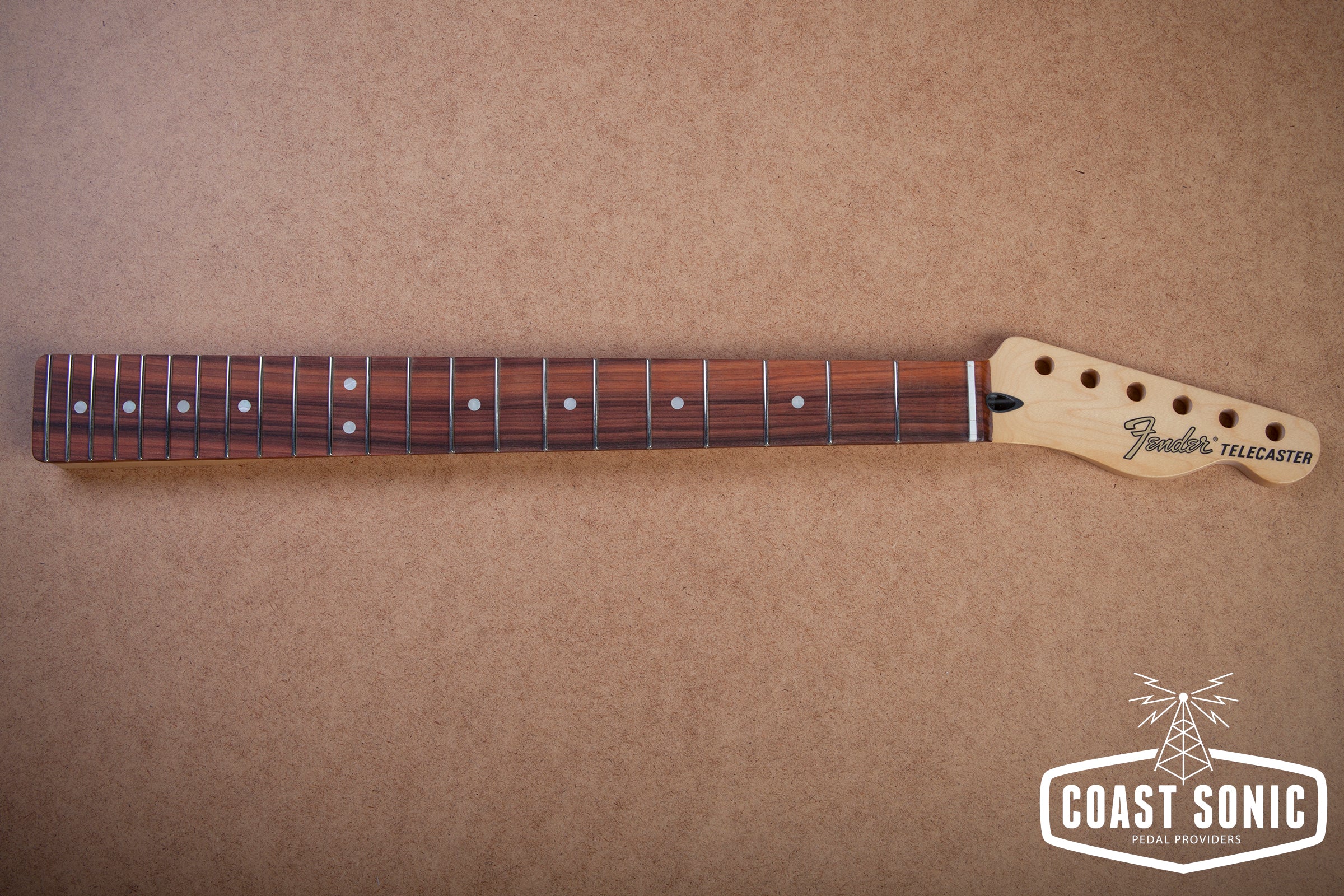

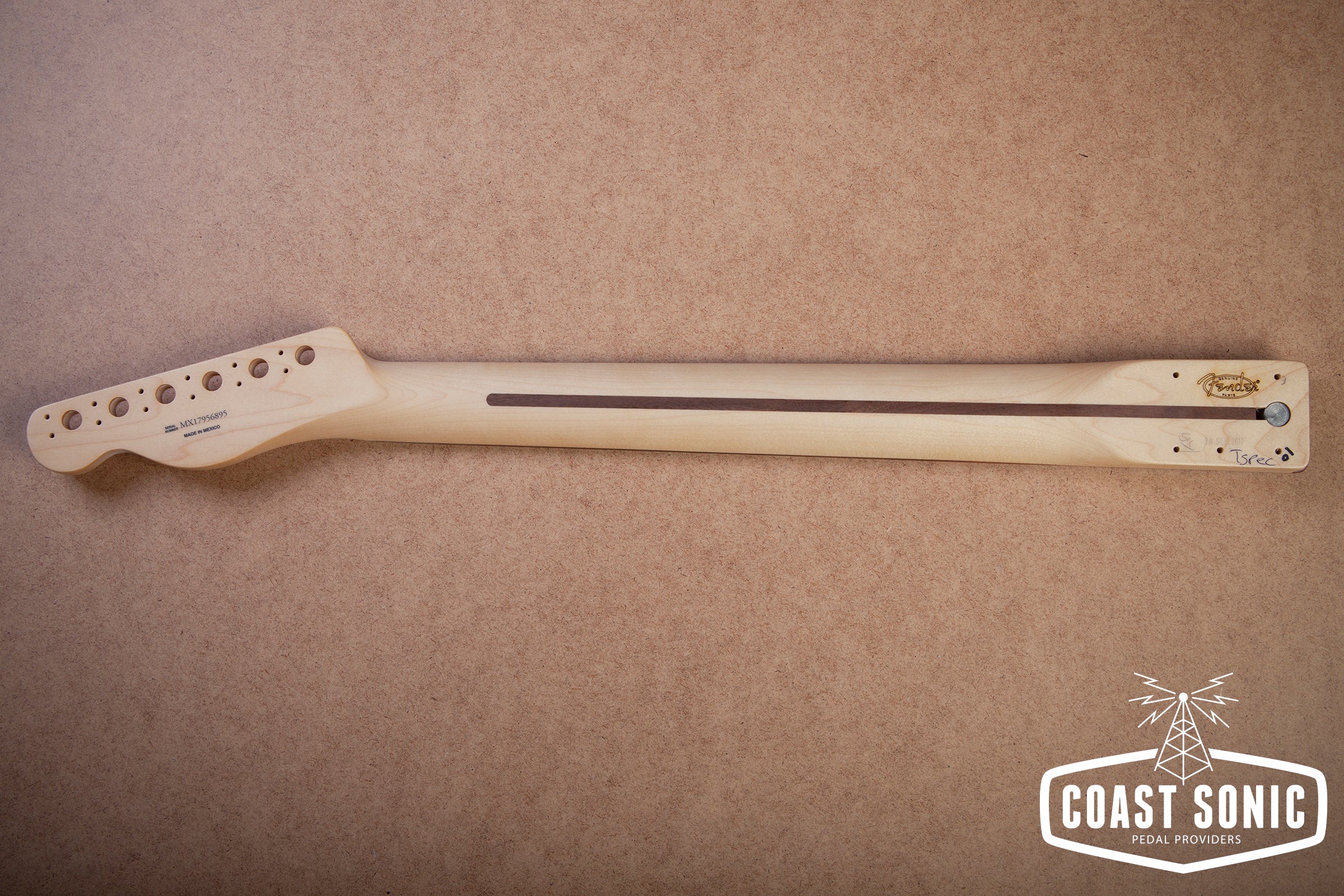

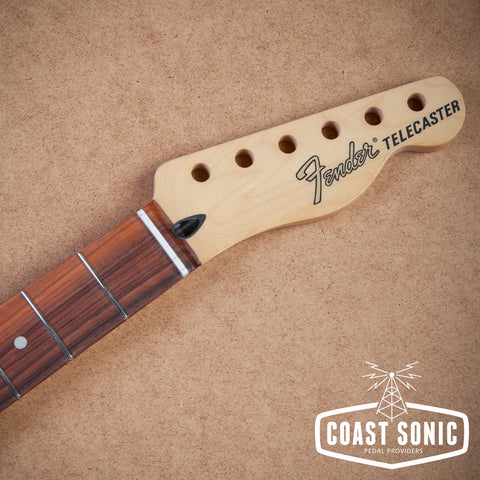

Crafted at our Ensenada, Mexico manufacturing facility, this genuine Fender Telecaster® Deluxe guitar neck features a comfortable "C"-shaped profile and 12"-radius Pau Ferro fingerboard with 22 narrow tall frets and black pearloid inlays.

The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin polyurethane finish on the back offers smooth playability.

GENERAL
  • Style
    Modern
  • Neck Shape
    Modern "C"
  • Tuner Mounting Config
    Modern 2-Peg
  • Where Used
    Deluxe Series
MATERIALS
  • Fingerboard Material
    Pau Ferro
  • Neck Material
    Maple
  • Nut Material
    Synthetic Bone
  • Position Inlays
    White Pearloid Dot
  • Neck Finish
    Satin Urethane
  • Truss Rod Nut
    3/16" Hex Adjustment
  • Truss Rod
    Standard
MEASUREMENTS
  • Fingerboard Radius
    12" (305 mm)
  • Scale Length
    25.5" (648 mm)
  • Nut Width
    1.650" (42 mm)
  • Number of Frets
    22
  • Fret Size
    Jumbo
  • Headstock Thickness
    .540" (13.71 mm)
  • Neck Thickness
    1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
  • Peg Hole Diameter
    .397" (10.08 mm)





    Type: Necks

    Vendor: Fender
