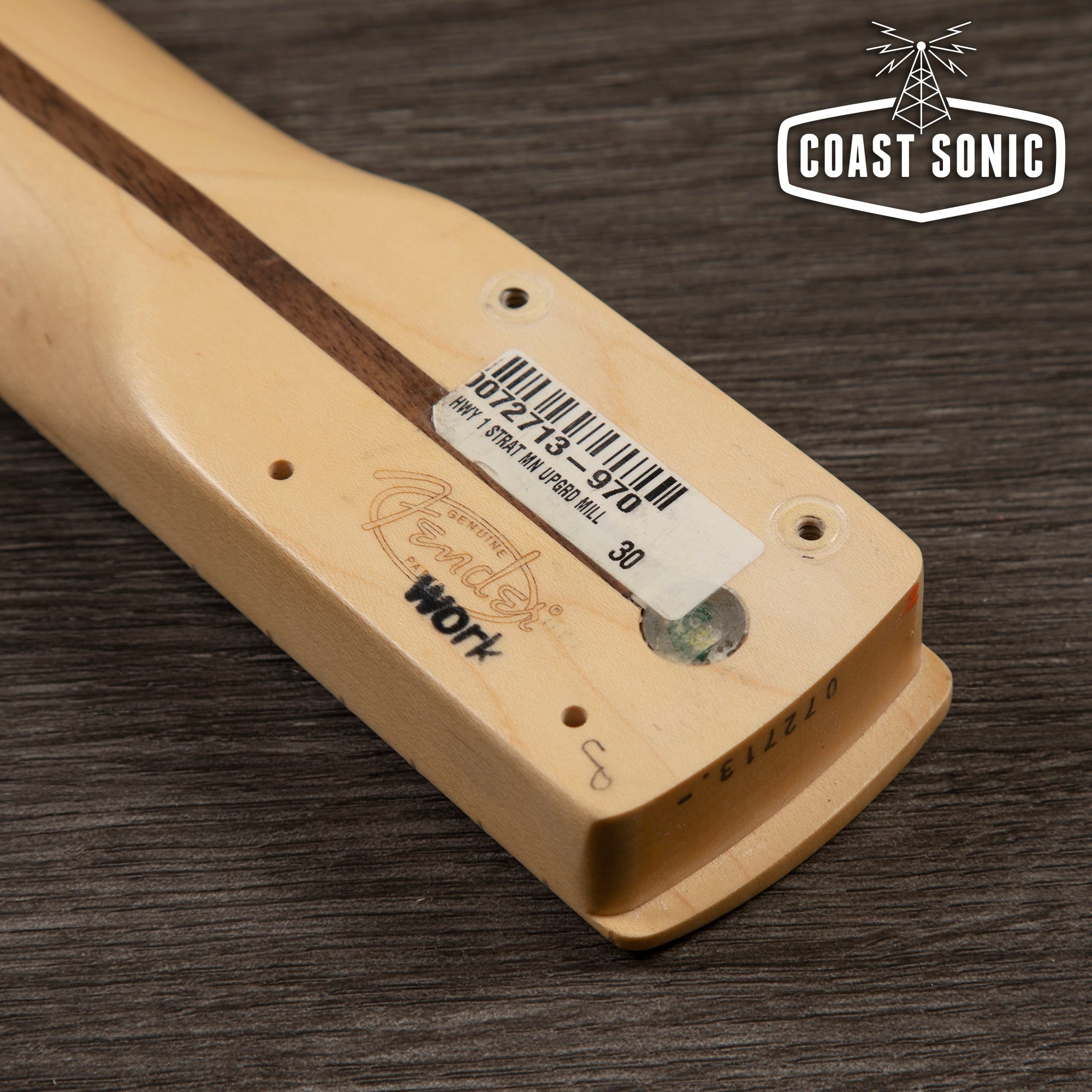

Fender American Special Stratocaster Neck-Maple

Name: Fender American Special Stratocaster Neck-Maple
Brand: Fender
Price: 479.99 USD
Availability: OutOfStock

Sold Out

Maker: Fender

Model: American Special Stratocaster Neck

Condition: New

Description:

Coast Sonic is an authorized Fender dealer.

'70S-STYLE STRATOCASTER® LOOKS

Fender replacement necks are made at Fender manufacturing facilities to the same specifications as those used on our instruments. Contours, finishes, fret sizes and all other materials are designed and crafted in genuine Fender fashion. U.S.-made necks have detailed frets, satin finishes, hand-rolled fingerboard edges and a "modern C" profile for comfortably smooth playability.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, and features a '70s-era headstock logo decal.

This replacement neck is for a Fender or Squier® by Fender guitar.

FEATURES

Maple neck w/ walnut stripe
Large ’70s headstock
Maple fingerboard with 9.5" radius
22 jumbo frets
Pre-slotted synthetic bone nut
Micro-Tilt™ neck adjustment
Six two-guide-pin tuning machine holes
GENERAL

Style

Modern

Neck Shape

Modern "C"

Tuner Mounting Config

Dual Guide Pin

Other Features

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Where Used

American Special Series

MATERIALS

Fingerboard Material

Maple

Neck Material

Maple

Nut Material

Synthetic Bone

Position Inlays

Black Dot

Neck Finish

Satin Urethane

Truss Rod Nut

1/8" Hex Adjustment

Truss Rod

Standard

MEASUREMENTS

Fingerboard Radius

9.5" (241 mm)

Scale Length

25.5" (648 mm)

Nut Width

1.6875" (42.86 mm)

Number of Frets

22

Fret Size

Jumbo

Headstock Thickness

.540” (13.71 mm)

Neck Thickness

1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)

Peg Hole Diameter

.404” (10.26 mm)
